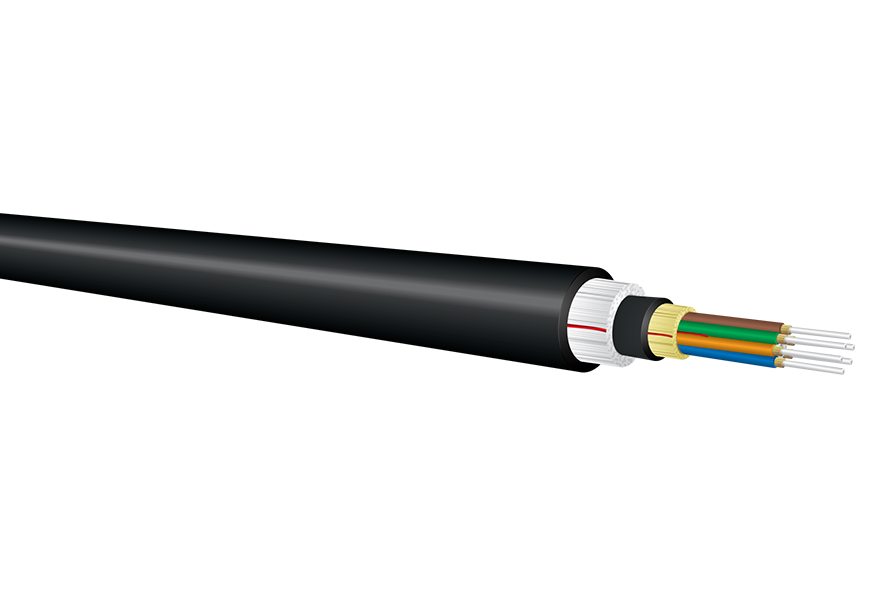

B-Series Breakout – Mil-Tac Rodent Deterrent (FRP) Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Mil-Tac cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
  • Used in areas susceptible to damage from small non-burrowing rodents

Applications

  • Mil-Tac cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
  • Used in areas susceptible to damage from small non-burrowing rodents

Features

  • Standard OCC B-Series Mil-Tac inner cable with an added layer of fiberglass yarn that provides effective deterrent to damage caused by small, non-burrowing rodents (not recommended for direct burial applications)
  • Most rugged, high-strength cable design incorporating subcables for direct termination
  • Includes a layer of fiberglass yarn that provides an effective deterrent to damage caused by small non-burrowing rodents
  • FRP is ideal for use for surface installations
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Mil-Tac cable can be made in a variety of colors for easy identification or to blend into the environment
  • 2 to 24 fibers
  • Helically stranded cable core for flexibility, deployment survivability, and excellent mechanical protection for the optical fibers
  • Mil-Tac is suitable for use with single, as well as multichannel connectors
  • Excellent crush resistance to withstand crowd and vehicle traffic
  • High tensile load rating for quick deployment and retrieval
  • Water, fungus and UV resistant for extreme environments
  • Outdoor, field-proven cables are easily deployed and retrieved for temporary or long-term data communications in harsh environments
  • Ideally suited for use with MIL-C-38999 style military connectors; subcables terminate to individual pins, and overall aramid strength member terminates to backshell
  • 2.0mm subcables standard
  • Standard Polyurethane (C), Flame-Retardant Tactical Polyurethane (V) and Low-Smoke Zero-Halogen (G) jackets are available

OCC PROVIDED OPTIONS

  • Mil-Tac cables pre-spooled on deployable reels for a ready-to-use product
  • Mil-Tac cables can be pre-terminated with single-fiber or ruggedized multichannel connectors upon request

Characteristics

CharacteristicC JacketV JacketG Jacket
Operating Temp-55°C to +85°C-55°C to +85°C-55°C to +85°C
Storage Temp-70°C to +85°C-70°C to +85°C-70°C to +85°C
Crush Resist2200 N/cm2200 N/cm2200 N/cm
Impact Resist1500 impacts1500 impacts1500 impacts
Flex Resist2000 cycles2000 cycles2000 cycles
Jacket TypeCVG

Specifications

C Jacket

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2B-002C***5KMF9 12.4
(0.5)
137.0
(92.0)
2,200
(490)
550
(120)
18.6
(7.3)
12.4
(4.9)
4B-004C***5KMF9 12.4
(0.5)
138.0
(93.0)
2,200
(490)
550
(120)
18.6
(7.3)
12.4
(4.9)
6B-006C***5KMF9 13.2
(0.5)
150.0
(101.0)
2,400
(540)
600
(130)
19.8
(7.8)
13.2
(5.2)
8B-008C***5KMF9 14.7
(0.6)
180.0
(121.0)
3,200
(720)
800
(180)
22.1
(8.7)
14.7
(5.8)
10B-010C***5KMF9 16.4
(0.6)
222.0
(149.0)
4,000
(900)
1,000
(220)
24.6
(9.7)
16.4
(6.5)
12B-012C***5KMF9 15.6
(0.6)
196.0
(132.0)
4,800
(1,080)
1,200
(270)
23.4
(9.2)
15.6
(6.1)
18B-018C***5KMF9 18.2
(0.7)
267.0
(179.0)
7,200
(1,620)
1,800
(400)
27.3
(10.7)
18.2
(7.2)
24B-024C***5KMF9 19.2
(0.8)
290.0
(195.0)
9,600
(2,160)
2,400
(540)
28.8
(11.3)
19.2
(7.6)

V Jacket

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2B-002V***5KMF8 11.6
(0.5)
128.0
(86.0)
2,200
(490)
550
(120)
17.4
(6.9)
11.6
(4.6)
4B-004V***5KMF8 11.6
(0.5)
130.0
(87.0)
2,200
(490)
550
(120)
17.4
(6.9)
11.6
(4.6)
6B-006V***5KMF8 12.5
(0.5)
144.0
(97.0)
2,400
(540)
600
(130)
18.8
(7.4)
12.5
(4.9)
8B-008V***5KMF8 12.9
(0.5)
173.0
(116.0)
3,200
(720)
800
(180)
19.4
(7.6)
12.9
(5.1)
10B-010V***5KMF8 15.4
(0.6)
213.0
(143.0)
4,000
(900)
1,000
(220)
23.1
(9.1)
15.4
(6.1)
12B-012V***5KMF8 14.7
(0.6)
191.0
(128.0)
4,800
(1,080)
1,200
(270)
22.1
(8.7)
14.7
(5.8)
18B-018V***5KMF8 17.2
(0.7)
263.0
(177.0)
7,200
(1,620)
1,800
(400)
25.8
(10.2)
17.2
(6.8)
24B-024V***KMF8 18.2
(0.7)
287.0
(193.0)
9,600
(2,160)
2,400
(540)
27.3
(10.7)
18.2
(7.2)

G Jacket

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2B-002G***5KMFB 11.6
(0.5)
125.0
(84.0)
2,200
(490)
550
(120)
17.4
(6.9)
11.6
(4.6)
4B-004G***5KMFB 11.6
(0.5)
127.0
(85.0)
2,200
(490)
550
(120)
17.4
(6.9)
11.6
(4.6)
6B-006G***KMFB 12.5
(0.5)
141.0
(95.0)
2,400
(540)
600
(130)
18.8
(7.4)
12.5
(4.9)
8B-008G***5KMFB 12.9
(0.5)
145.0
(97.0)
3,200
(720)
800
(180)
19.4
(7.6)
12.9
(5.1)
10B-010G***5KMFB 15.4
(0.6)
209.0
(140.0)
4,000
(900)
1,000
(220)
23.1
(9.1)
15.4
(6.1)
12B-012G***5KMFB 14.7
(0.6)
187.0
(126.0)
4,800
(1,080)
1,200
(270)
22.1
(8.7)
14.7
(5.8)
18B-018G***5KMFB 17.2
(0.7)
258.0
(173.0)
7,200
(1,620)
1,800
(400)
25.8
(10.2)
17.2
(6.8)
24B-024G***5KMFB 18.2
(0.7)
282.0
(189.0)
9,600
(2,160)
2,400
(540)
27.3
(10.7)
18.2
(7.2)
