DX-Series Distribution – Plenum Indoor/Outdoor Aluminum Interlocking Armored Rated Cables
Installation zone RECOMMENDATION1
1
1
1
- Ideal for industrial and other installations requiring a metallic conduit
- Interlocking pre-loaded armor may eliminate the need for conduit, reducing installation costs
Applications
- Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
- Ideal configuration for a single termination point requiring multiple fibers

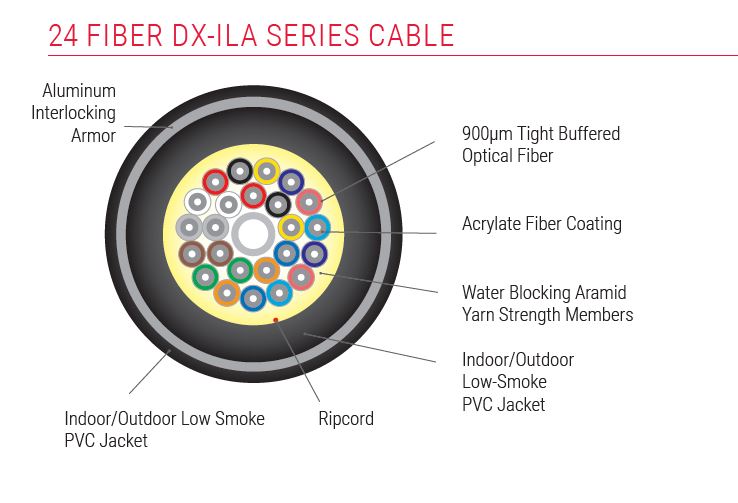

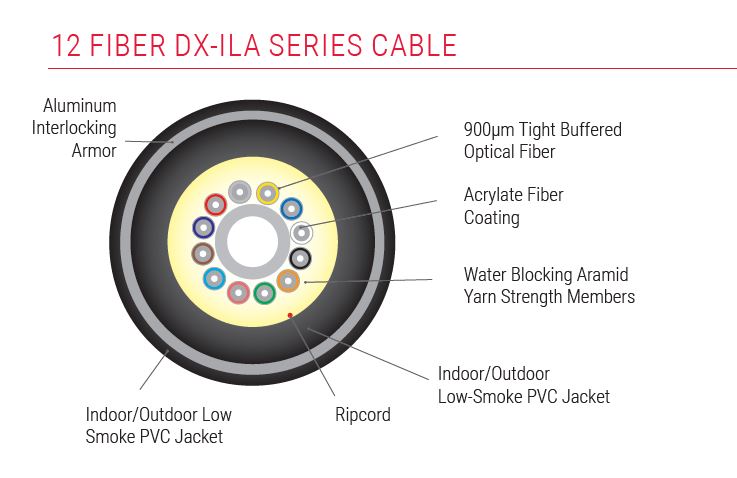

- Aluminum interlocking armor with Low-Smoke PVC overjacket
- Interlocking armor can be easily removed leaving an intact inner cable
- Greater flexibility than corrugated steel armored (CST) cables
- Ideal for locations that require conduit for cable protection
- Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments
Features
- UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
- Low-smoke PVC inner and outer jackets
- 2 to 24 fibers
- Cable materials are Indoor/Outdoor UL-Listed OFCP and also UV, water and fungus resistant
- High performance tight-buffered coating on each fiber for environmental and mechanical protection
- 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.
- Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers
- Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments
Characteristics
| Characteristic | Plenum (Indoor/Outdoor) |
|---|---|
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +70°C |
| Install Temp | 0°C to +60°C |
| Flame Retardancy | UL Listed Type OFCP NFPA262 FT6 (CSA C22.2 No. 232) |
| Crush Resist | 650 N/cm |
| Impact Resist | 20 impacts |
| Flex Resist | 25 cycles |
| Jacket Type | T |
Standards
OCC indoor/outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:
- ANSI/NFPA 262
- ICEA-S-83-596
- UL 1651
Specifications
(ILA) – PLENUM- (“T” jacket)
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Spec Sheet | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | DX002T***9*PI8 | Download Spec Sheet |
12.6 (0.50) |
99.0 (149.0) |
1,350 (300) |
400 (90) |
25.2 (9.9) |
18.9 (7.4) |
|
| 4 | DX004T***9*PI8 | Download Spec Sheet |
12.6 (0.50) |
147.0 (99.0) |
1,350 (300) |
400 (90) |
25.2 (9.9) |
18.9 (7.4) |
|
| 6 | DX006T***9*PI8 | Download Spec Sheet |
12.6 (0.50) |
147.0 (99.0) |
1,350 (300) |
400 (90) |
25.2 (9.9) |
18.9 (7.4) |
|
| 8 | DX008T***9*PI8 | Download Spec Sheet |
12.6 (0.50) |
147.0 (99.0) |
1,350 (300) |
400 (90) |
25.2 (9.9) |
18.9 (7.4) |
|
| 12 | DX012T***9*PI8 | Download Spec Sheet |
14.1 (0.56) |
196.0 (132.0) |
1,350 (300) |
400 (90) |
28.6 (11.3) |
21.2 (8.3) |
|
| 18 | DX018T***9*PI8 | Download Spec Sheet |
14.1 (0.56) |
196.0 (132.0) |
1,350 (300) |
400 (90) |
28.6 (11.3) |
21.2 (8.3) |
|
| 24 | DX024T***9*PI8 | Download Spec Sheet |
15.1 (0.59) |
214.0 (144.0) |
1,350 (300) |
400 (90) |
30.2 (11.9) |
22.7 (8.9) |
|
