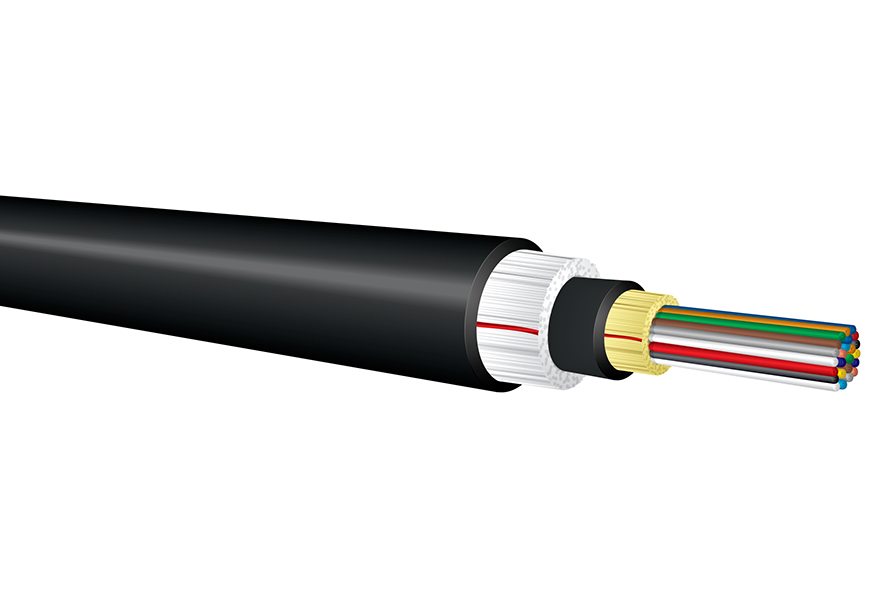

DX-Series Distribution – Rodent Deterrent (FRP) Riser Rated Cables

Installation zone RECOMMENDATION

Used in areas that require a riser rating and are susceptible to damage from small non-burrowing rodents

Features

Includes a layer of fiberglass yarn that provides an effective deterrent to damage caused by small non-burrowing rodents(not recommended for direct burial applications)
FRP is ideal for use in surface installations
2 to 144 fibers

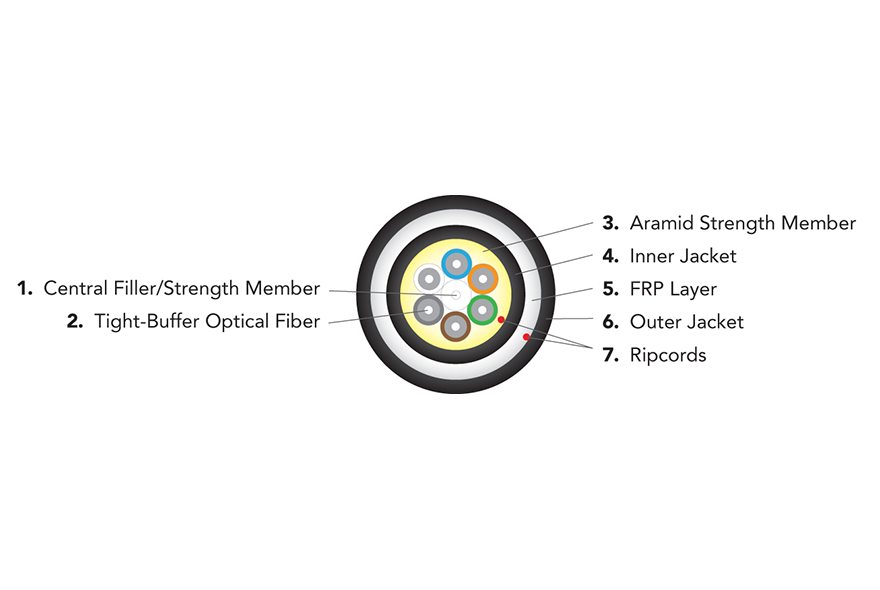

Helically stranded cable core for flexibility, survival in difficult pulls, and excellent mechanical protection for the optical fibers
Cables are suitable for use with single, as well as multichannel connectors
Water resistant and UV resistant for extreme environments

Characteristics

Characteristic	Rodent Deterrent
Operating Temp	-40°C to +85°C
Storage Temp	-55°C to +85°C
Install Temp	-10°C to +60°C
Flame Retardancy	UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
Crush Resist	1800 N/cm
Impact Resist	1500 impacts
Flex Resist	2000 cycles
Jacket Type	D

Standards

OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

UL 1666
UL 1651
GR-409-CORE
ICEA-S-104-696
ICEA-S-83-596
TIA-568
TIA-598

Specifications

Rodent Deterrent

					Tensile Load		Minimum Bend Radius
Fiber Count	Part Number	Part Number Configurator	Diameter mm (in)	Weight kg/km (lbs/1,000ft)	Installation N (lbs)	Operation N (lbs)	Installation cm (in)	Longer Term cm (in)
2		Please Call OCC for ordering assistance.	9.7 (0.38)	95.0 (64.0)	1,400 (310)	450 (100)	14.6 (5.7)	9.7 (3.8)
4		Please Call OCC for ordering assistance.	9.7 (0.38)	95.0 (64.0)	1,400 (310)	450 (100)	14.6 (5.7)	9.7 (3.8)
6		Please Call OCC for ordering assistance.	9.7 (0.38)	95.0 (64.0)	1,400 (310)	450 (100)	14.6 (5.7)	9.7 (3.8)
8		Please Call OCC for ordering assistance.	10.0 (0.39)	101.0 (68.0)	1,600 (360)	525 (120)	15.0 (5.9)	10.0 (3.9)
10		Please Call OCC for ordering assistance.	10.8 (0.43)	119.0 (80.0)	2,100 (472)	700 (157)	16.2 (6.4)	10.8 (4.3)
12		Please Call OCC for ordering assistance.	11.7 (0.46)	137.0 (92.0)	2,700 (600)	600 (135)	17.6 (6.9)	11.7 (4.6)
18		Please Call OCC for ordering assistance.	11.7 (0.46)	139.0 (93.0)	2,700 (600)	600 (135)	17.6 (6.9)	11.7 (4.6)
24		Please Call OCC for ordering assistance.	13.1 (0.52)	159.0 (107.0)	3,000 (674)	1,000 (220)	17.7 (7.0)	13.1 (5.2)
30		Please Call OCC for ordering assistance.	13.2 (0.52)	167.0 (112.0)	3,000 (374)	1,000 (220)	19.8 (7.8)	13.2 (5.2)
36		Please Call OCC for ordering assistance.	13.2 (0.52)	163.0 (110.0)	3,000 (670)	1,000 (220)	19.8 (7.8)	13.2 (5.2)
48		Please Call OCC for ordering assistance.	14.2 (0.56)	188.0 (126.0)	4,200 (940)	1,400 (310)	21.3 (8.4)	14.2 (5.6)
60		Please Call OCC for ordering assistance.	16.3 (0.64)	250.0 (168.0)	4,800 (1,080)	1,600 (360)	24.5 (9.6)	16.3 (6.4)
72		Please Call OCC for ordering assistance.	18.3 (0.72)	312.0 (210.0)	5,400 (1,214)	1,800 (405)	27.5 (10.8)	18.3 (7.2)
84		Please Call OCC for ordering assistance.	18.9 (0.74)	323.0 (217.0)	6,000 (1,350)	2,000 (450)	28.4 (11.2)	18.9 (7.4)
96		Please Call OCC for ordering assistance.	19.6 (0.77)	353.0 (237.0)	6,000 (1,350)	2,000 (450)	29.4 (11.6)	19.6 (7.7)
108		Please Call OCC for ordering assistance.	20.9 (0.82)	401.0 (269.0)	6,000 (1,350)	2,000 (450)	31.4 (12.4)	20.9 (8.2)
120		Please Call OCC for ordering assistance.	21.8 (0.86)	436.0 (293.0)	6,000 (1,350)	2,000 (450)	32.7 (12.9)	21.8 (8.6)
132		Please Call OCC for ordering assistance.	22.0 (0.87)	456.0 (306.0)	6,000 (1,350)	2,000 (450)	33.1 (13.0)	22.0 (8.7)
144		Please Call OCC for ordering assistance.	23.0 (0.91)	496.0 (333.0)	6,000 (1,350)	2,000 (450)	34.5 (13.6)	23.0 (9.1)
