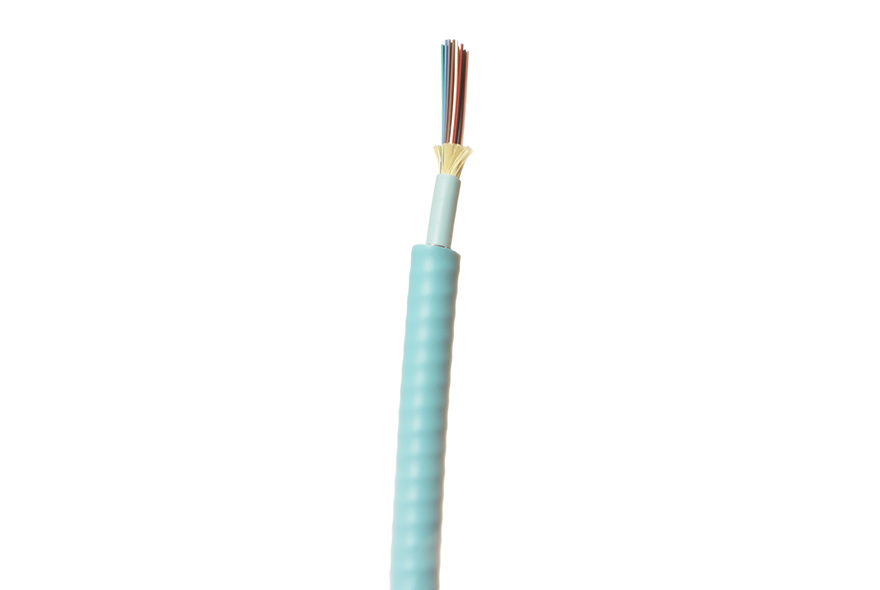

DZ-Series – Plenum Indoor/Outdoor Aluminum Interlocking Armored (ILA) Cables

Installation zone RECOMMENDATION
1
1
1
1

Offering the durability you expect from OCC, these distribution cables provide all of the indispensable elements needed for Indoor and Indoor/Outdoor commercial applications, while providing great value. Manufactured with Indoor/Outdoor grade low smoke PVC for plenum applications.

Interlocking aluminum armor may eliminate the need for conduit, reducing installation costs for commercial or other installations requiring a metallic conduit.

Applications

  • Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
  • Ideal configuration for a single termination point requiring multiple fibers
  • Aluminum interlocking armor with Low-Smoke PVC over-jacket
  • Interlocking armor can be easily removed leaving an intact plenum rated inner cable
  • Ideal for locations that require conduit for cable protection
  • Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

Features

  • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
  • Low-smoke PVC inner and outer jackets
  • 2- to 24- fibers
  • Cable materials are Indoor/Outdoor UL-Listed OFCP and also UV, water and fungus resistant
  • High performance tight-buffered coating on each fiber for environmental and mechanical protection
  • 900 µm buffer works well with both Xpress Ultra mechanical connectors and fusion splice pigtails
  • Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments

Characteristics

Characteristic DZ-ILA Series - Plenum Rated Cables
Operating Temp -40°C to +70°C
Storage Temp -40°C to +70°C
Install Temp 0°C to +60°C
Flame Retardancy UL Listed Type OFCP NFPA262 and FT6 (CSA C22.2 No. 232)

Specifications

Specifications

Tensile Load Minimum Bend Radius
Fiber Count Part Number Spec Sheet Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
4 Download Spec Sheet 12.6
(0.50) 		140.0
(0.0) 		0
(0) 		0
(0) 		25.2
(9.9) 		18.9
(7.4)
6 Download Spec Sheet 12.6
(0.50) 		142.0
(0.0) 		0
(0) 		0
(0) 		25.2
(9.9) 		18.9
(7.4)
8 Download Spec Sheet 13.1
(0.52) 		153.0
(0.0) 		0
(0) 		0
(0) 		26.2
(10.3) 		19.7
(7.8)
12 Download Spec Sheet 13.1
(0.52) 		163.0
(0.0) 		0
(0) 		0
(0) 		26.2
(10.3) 		19.7
(7.8)
18 Download Spec Sheet 14.6
(0.57) 		0.0
(196.0) 		0
(0) 		0
(0) 		29.2
(11.5) 		21.9
(8.6)
24 Download Spec Sheet 14.6
(0.57) 		202.0
(0.0) 		0
(0) 		0
(0) 		29.2
(11.5) 		21.9
(8.6)

Instruction Sheets

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
