DZ-Series – Riser Rated Cables

Installation zone RECOMMENDATION
1
1
1
1

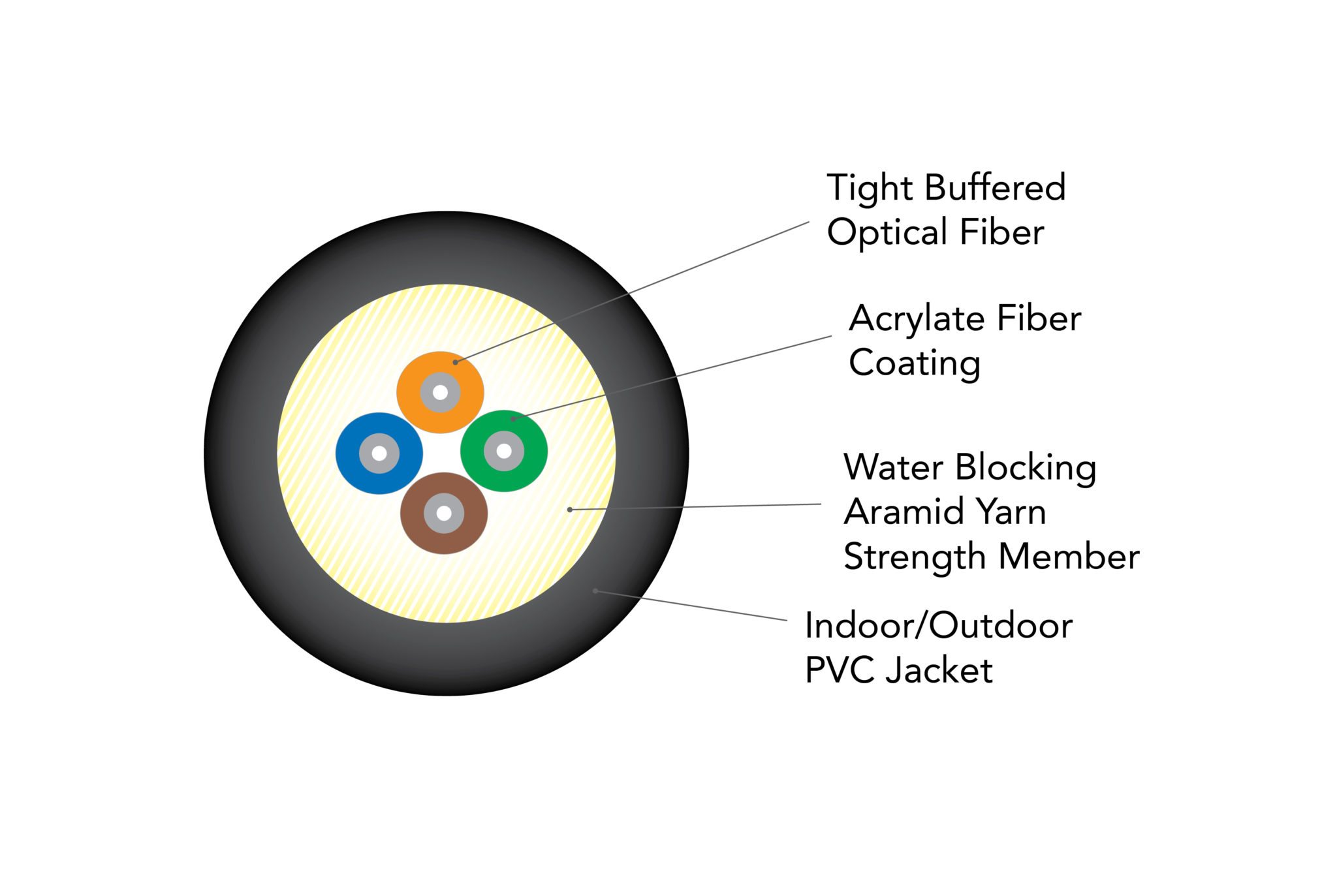

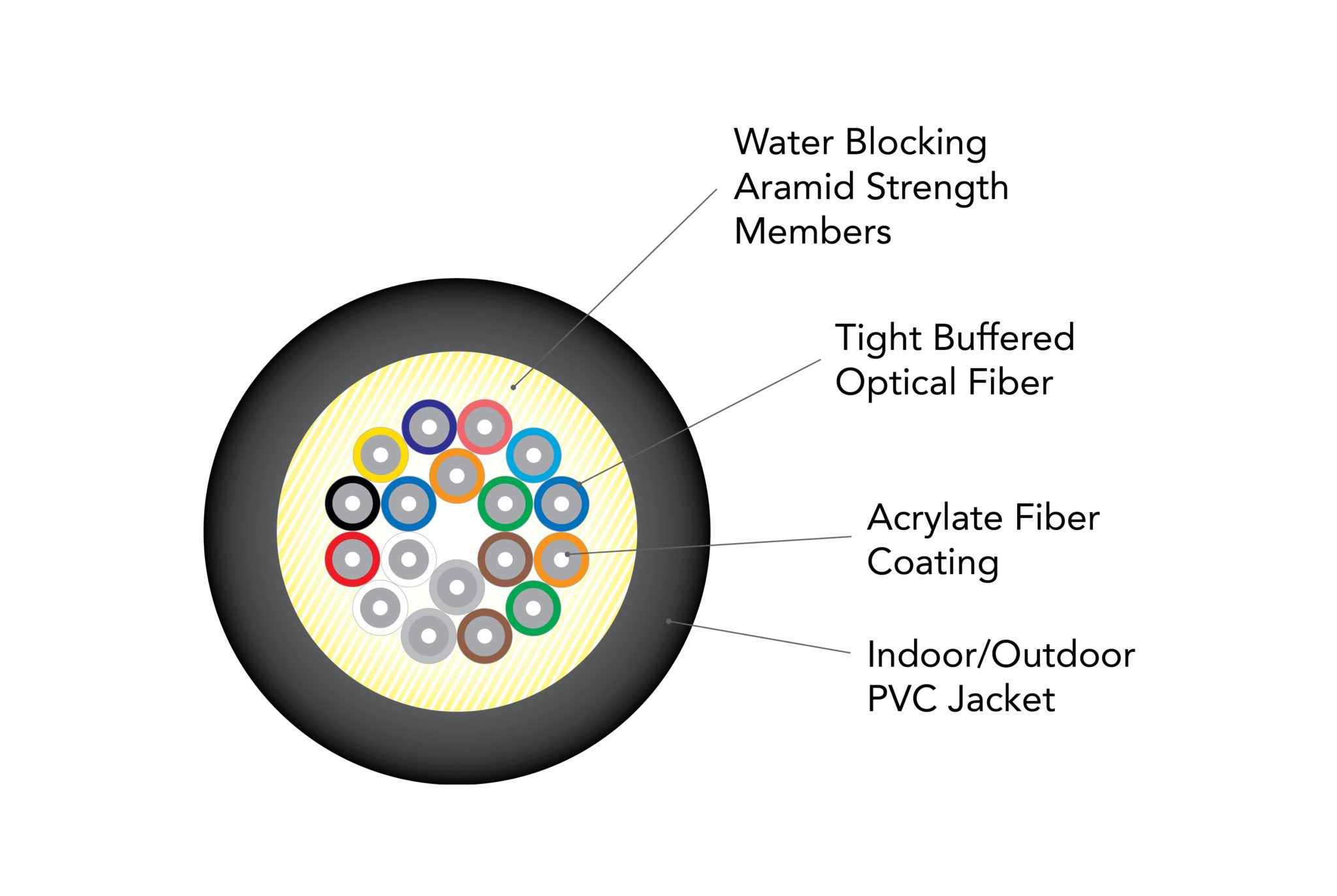

  • Offering the durability you expect from OCC, these distribution cables provide all of the indispensable elements needed for Indoor and Indoor/Outdoor commercial applications, while providing great value.

Features

  • Ease of Termination
  • Product in Inventory / Short Lead Time
  • Lightweight
  • Designed & Manufactured in the USA
  • Industry-Leading Fiber Performance Specification
  • Manufactured with OCC’s Industry-Leading Polymers
  • Covered by OCC's 25yr Channel/Link Limited Warranty
  • A Versatile Choice for Indoor/Outdoor Use
  • Available in Indoor/Outdoor Riser (OFNR), or Plenum (OFNP)
  • Available in 4-24 Fibers
  • Colors Available: Aqua, Black, Orange, and Yellow
  • ICEA 696 Compliant
  • Water Blocked
  • -40°C to + 70°C Temperature Range
  • ROHS & Reach Compliant
  • Bend Insensitive Fibers are Standard

Characteristics

Characteristic DZ-Series - Riser Rated Cables
Operating Temp -40°C to +70°C
Storage Temp -40°C to +70°C
Install Temp -10°C to +60°C
Flame Retardancy UL Listed Type OFNR and FT4 (CSA C22.2 no. 232)
Jacket Type Indoor / Outdoor Low Smoke PVC

Specifications

Tensile Load Minimum Bend Radius
Fiber Count Part Number Spec Sheet Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

4 DZ004D***9*R Download Spec Sheet 5.3
(0.2)
28.0
(19.0)
660
(150)
200
(45)
10.6
(4.2)
5.3
(2.1)
6 DZ006D***9*R Download Spec Sheet 5.3
(0.2)
29.0
(19.0)
660
(150)
200
(45)
10.6
(4.2)
5.3
(2.1)
8 DZ008D***9*R Download Spec Sheet 5.3
(0.2)
33.0
(22.0)
660
(150)
200
(45)
10.6
(4.2)
5.3
(2.1)
12 DZ012D***9*R Download Spec Sheet 6.7
(0.3)
37.0
(25.0)
660
(150)
200
(45)
13.4
(5.3)
6.7
(2.6)
18 DZ018D***9*R Download Spec Sheet 7.9
(0.3)
48.0
(32.0)
1,320
(300)
400
(90)
15.8
(6.2)
7.9
(3.1)
24 DZ024D***9*R Download Spec Sheet 7.9
(0.3)
54.0
(36.0)
1,320
(300)
400
(90)
15.8
(6.2)
7.9
(3.1)

Instruction Sheets

Related Documents

Please Login Here to access additional documents.

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
