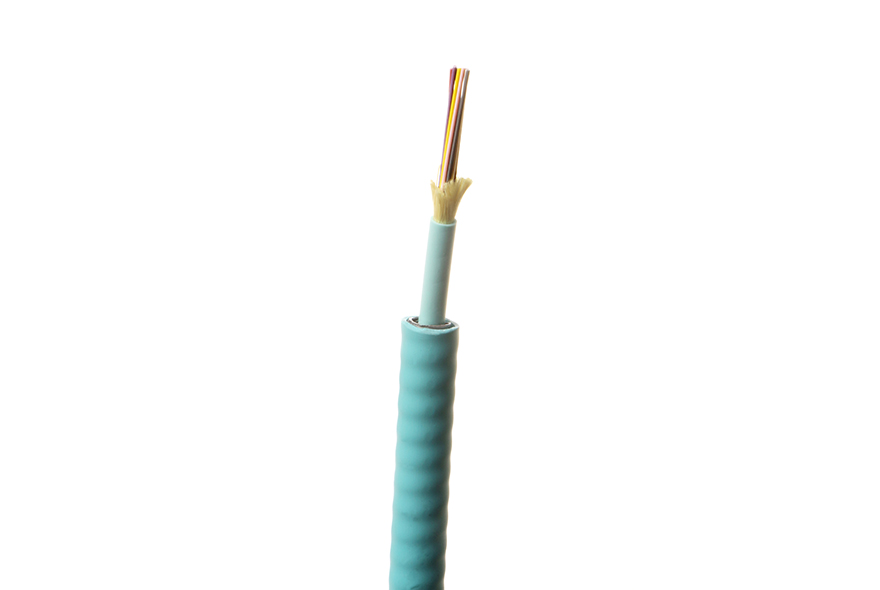

DZ-Series – Riser Indoor/Outdoor Aluminum Interlocking Armored Cables

Installation zone RECOMMENDATION

Offering the durability you expect from OCC, these distribution cables provide all of the indispensable elements needed for Indoor and Indoor/Outdoor commercial applications, while providing great value. Manufactured with Indoor/Outdoor grade PVC for riser applications.

Interlocking aluminum armor may eliminate the need for conduit, reducing installation costs for commercial or other installations requiring a metallic conduit.

Applications

Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
Ideal configuration for a single termination point requiring multiple fibers
Aluminum interlocking armor with PVC over-jacket
Interlocking armor can be easily removed leaving an intact riser rated inner cable
Ideal for locations that require conduit for cable protection
Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

Features

UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
PVC inner and outer jackets
2- to 24-fibers
Cable materials are Indoor/Outdoor UL-Listed OFCR and also UV, water and fungus resistant
High performance tight-buffered coating on each fiber for environmental and mechanical protection
900 µm buffer works well with both Xpress Ultra mechanical connectors and fusion splice pigtails
Can be installed outside and in riser pathways inside, eliminating the need to transition cable types between environments

Characteristics

Characteristic	DZ-ILA Series - Riser Rated Cables
Operating Temp	-40°C to +70°C
Storage Temp	-40°C to +70°C
Install Temp	-10°C to +60°C
Flame Retardancy	UL Listed Type OFCR and FT4 (CSA C22.2 no. 232)
Jacket Type	Indoor / Outdoor Low Smoke PVC

Specifications

					Tensile Load		Minimum Bend Radius
Fiber Count	Part Number	Spec Sheet	Diameter mm (in)	Weight kg/km (lbs/1,000ft)	Installation N (lbs)	Operation N (lbs)	Installation cm (in)	Longer Term cm (in)
4		Download Spec Sheet	13.0 (0.51)	152.0 (0.0)	0 (0)	0 (0)	26.2 (10.3)	19.7 (7.8)
6		Download Spec Sheet	13.1 (0.52)	152.0 (0.0)	0 (0)	0 (0)	26.2 (10.3)	19.7 (7.8)
8		Download Spec Sheet	13.1 (0.52)	157.0 (0.0)	0 (0)	0 (0)	26.2 (10.3)	19.7 (7.8)
12		Download Spec Sheet	14.1 (0.56)	176.0 (0.0)	0 (0)	0 (0)	28.2 (11.1)	21.2 (8.3)
18		Download Spec Sheet	15.6 (0.61)	200.0 (0.0)	0 (0)	0 (0)	31.3 (12.3)	23.4 (9.2)
24		Download Spec Sheet	15.6 (0.61)	206.0 (0.0)	0 (0)	0 (0)	31.3 (12.3)	23.4 (9.2)
