G-Series Subgrouping – Rodent Deterrent (FRP) Riser Rated Cables
Installation zone RECOMMENDATION1
1
1
1
- Used in areas that require a riser rating and are susceptible to damage from small non-burrowing rodents
Features

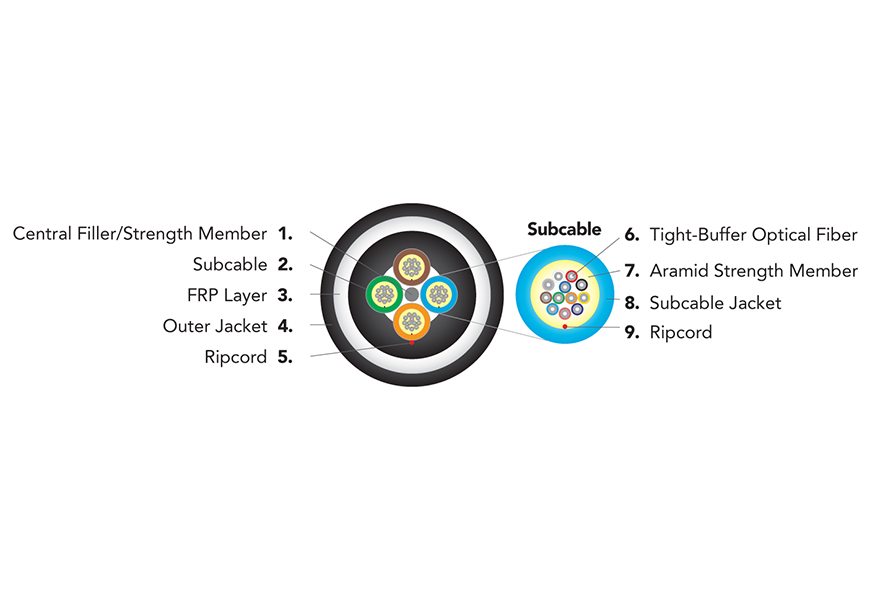

- Includes a layer of fiberglass yarn that provides an effective deterrent to damage caused by small non-burrowing rodents (not recommended for direct burial applications)
- FRP is ideal for use in surface installations
- UL listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
- 2 to 72 fibers
- Helically stranded cable core for flexibility, survival in difficult pulls and excellent mechanical protection for the optical fibers
- Water resistant and UV resistant for extreme environments
Characteristics
| Characteristic | 6 Fiber Subunits | 12 Fiber Subunits |
|---|---|---|
| Operating Temp | -40°C to +85°C | -40°C to +85°C |
| Storage Temp | -55°C to +85°C | -55°C to +85°C |
| Install Temp | -10°C to +60°C | -10°C to +60°C |
| Flame Retardancy | UL listed OFNR (UL 1666) and FT4 (CSA C22.2 No. 232) | UL listed OFNR (UL 1666) and FT4 (CSA C22.2 No. 232) |
| Crush Resist | 1800 N/cm | 1800 N/cm |
| Impact Resist | 1500 impacts | 1500 impacts |
| Flex Resist | 2000 cycles | 2000 cycles |
| Jacket Type | D | D |
Standards
OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements od the following standards:
- UL 1666
- UL 1651
- GR-409-CORE
- ICEA-S-104-696
- ICEA-S-83-596
- TIA-568
- TIA-598
Specifications
6-Fiber (4.5mm) Subcables
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 18 | GB018D***9KRF1 |
18.5 (0.73) |
332.0 (223.0) |
4,700 (1,060) |
1,800 (400) |
27.8 (10.9) |
18.5 (7.3) |
||
| 24 | GB024D***9KRF1 |
18.5 (0.73) |
332.0 (223.0) |
5,600 (1,260) |
1,900 (420) |
27.8 (10.9) |
18.5 (7.3) |
||
| 30 | GB030D***9KRF1 |
19.4 (0.76) |
368.0 (247.0) |
7,500 (1,690) |
2,400 (540) |
29.1 (11.5) |
19.4 (7.6) |
||
| 36 | GB036D***9KRF1 |
21.1 (0.83) |
436.0 (293.0) |
8,900 (2,000) |
2,850 (640) |
31.7 (12.5) |
21.1 (8.3) |
||
12-Fiber (5.5mm) Subcables
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 24 | GX024D***9KRF1 |
20.8 (0.82) |
410.0 (276.0) |
4,600 (1,030) |
1,500 (340) |
31.2 (12.3) |
20.8 (8.2) |
||
| 36 | GX036D***9KRF1 |
20.8 (0.82) |
410.0 (276.0) |
5,900 (1,330) |
1,050 (440) |
31.2 (12.3) |
20.8 (8.2) |
||
| 48 | GX048D***9KRF1 |
20.8 (0.82) |
410.0 (276.0) |
7,200 (1,620) |
2,400 (540) |
31.2 (12.3) |
20.8 (8.2) |
||
