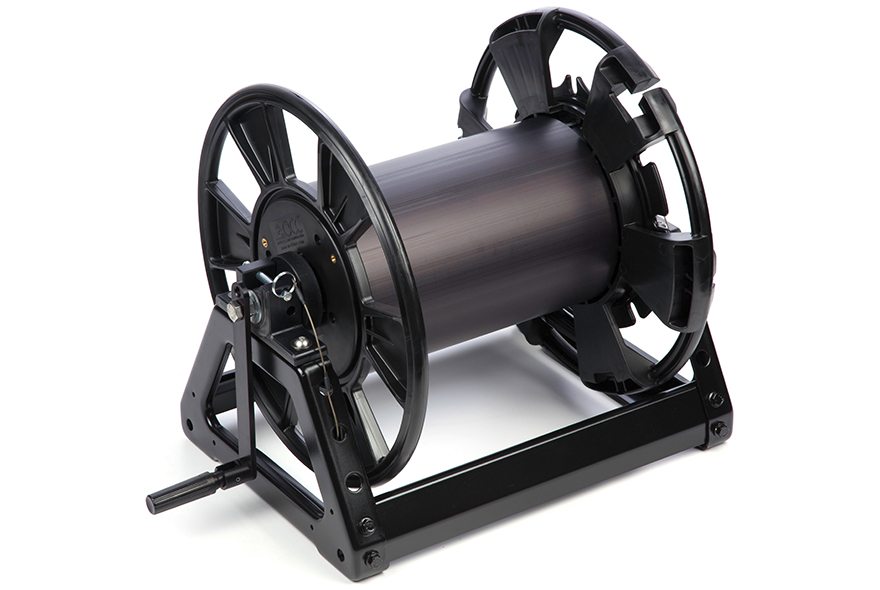

MARS® Integrated Axle Reel (A-Frame)

Installation zone RECOMMENDATION
  • Easily deployed and stored base for 750M and 1000M reels

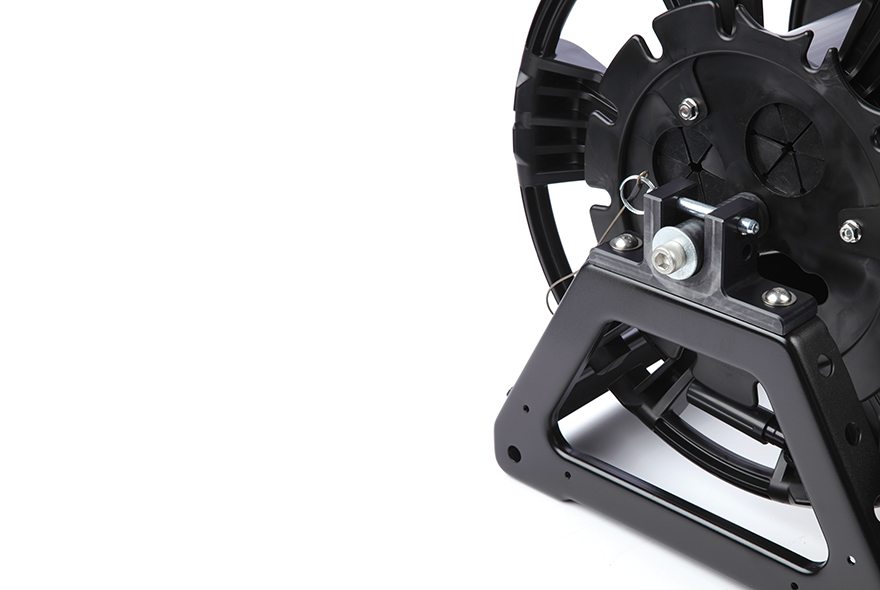

  • U bearing allows convenient swapping of reels
  • Pin latches secure reel during deployment
  • The reel axle is field installable and can be interchanged with backpack axle
  • Integrated crank handle allows for easy acquisition of cable


  • Mobile Emergency Telecommunications Stations
  • Mobile Tactical Shelters
  • United States Army, Navy, and Marine Corps Military Tactical Deployments
  • Broadcast
  • Emergency Restoration and Deployable Communications


Download Drawing(s)
Part Number Description PDF DWG/ZIP
AAR-0750-B Base with axle for 750M reel, black n/a n/a
AAR-1000-B Base with axle for 1000M reel, black n/a n/a

Instruction Sheets

Related Documents

Please Login Here to access additional documents.
