MARS® Tripod

Installation zone RECOMMENDATION

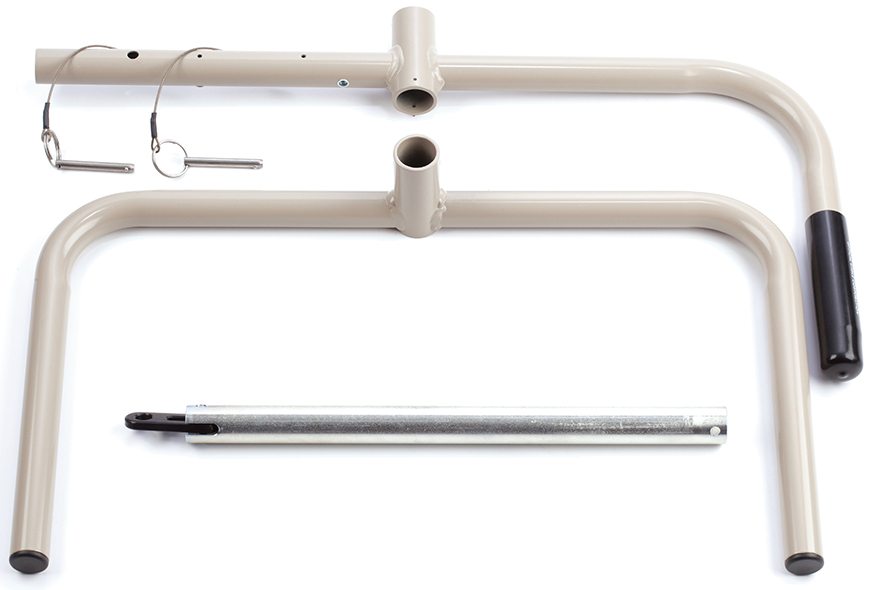

  • Design allows for disassembly into four components for easy shipping and storage
  • Pin latches are tethered to base and lock into place

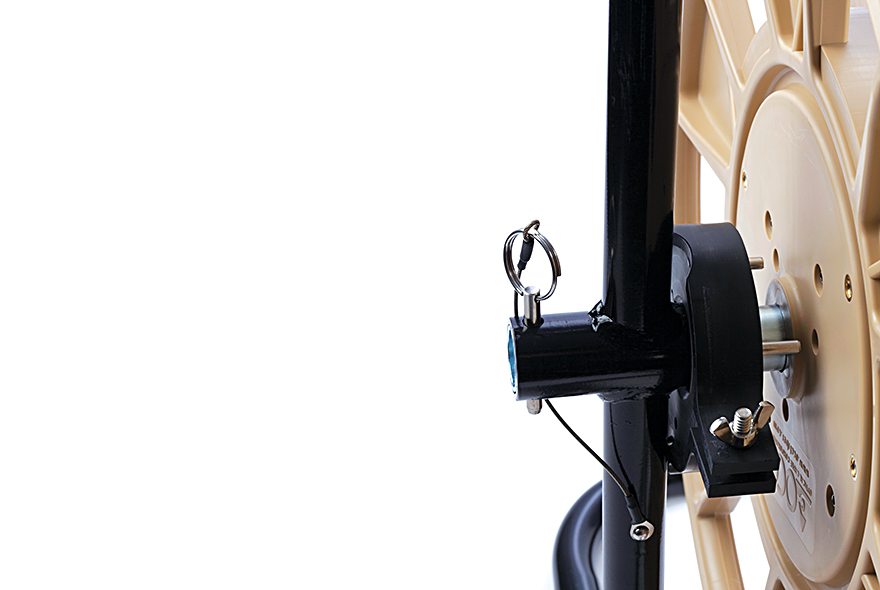

  • Integrated brake adjusts the drag applied to the reel, which prevents overspin
  • Axles are easily interchanged and available in 100, 300 and 500M sizes

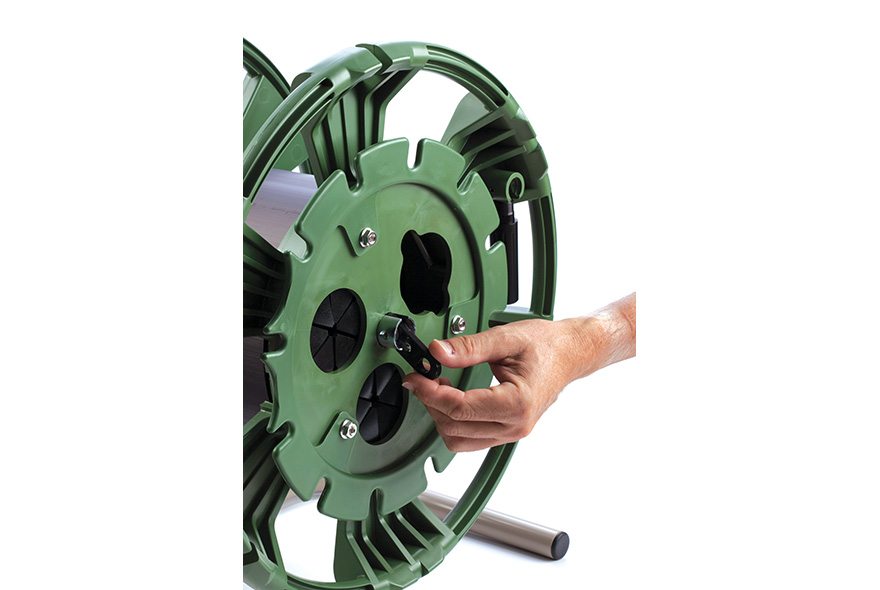

  • The axle latch can easily be positioned to retain or remove the reel
  • Curved handle bar allows for easy management and deployment


  • Mobile Emergency Telecommunications Stations
  • Mobile Tactical Shelters
  • United States Army, Navy, and Marine Corps Military Tactical Deployments
  • Broadcast
  • Emergency Restoration and Deployable Communications


Download Drawing(s)
Part Number Description PDF DWG/ZIP
ART-0100-Y Tripod for 100M reel, without brake n/a n/a
ART-0300-Y Tripod for 300M reel, without brake n/a n/a
ART-0500-Y Tripod for 500M reel, without brake n/a n/a
ATB-0100-Y Tripod for 100M reel, with brake n/a n/a
ATB-0300-Y Tripod for 300M reel, with brake n/a n/a
ATB-0500-Y Tripod for 500M reel, with brake n/a n/a

Replace "Y" with color code: B = black, G = green, T = desert tan.
