MARS® Transit Case with Acquisition Cradle

Installation zone RECOMMENDATION

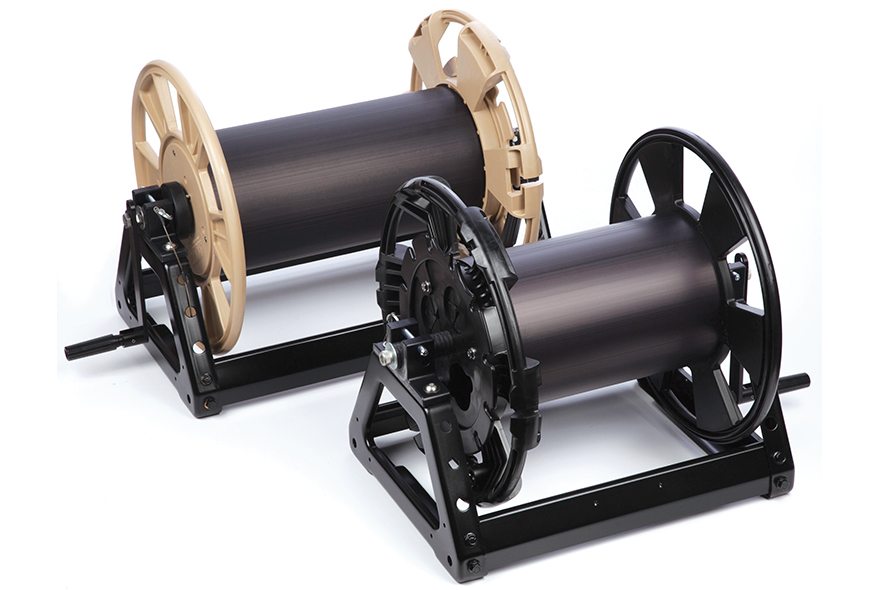

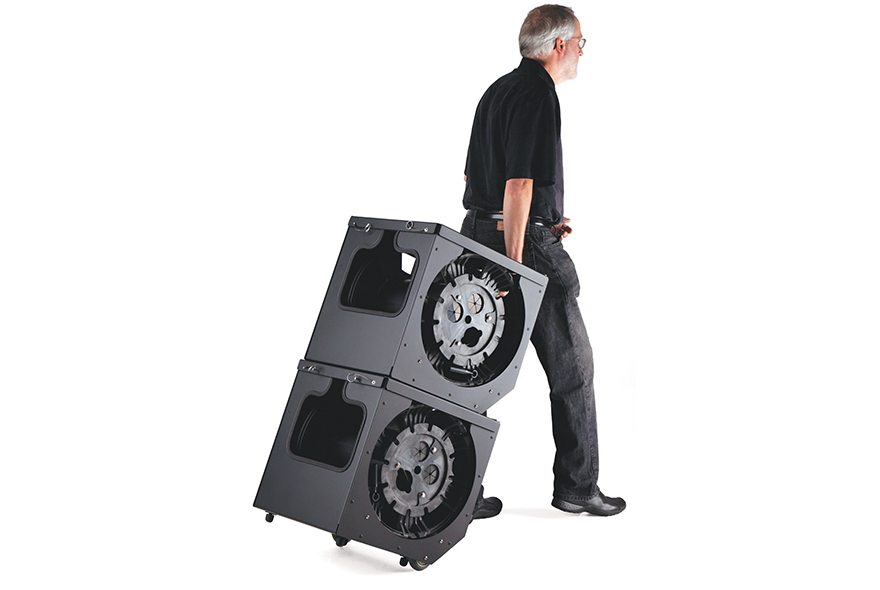

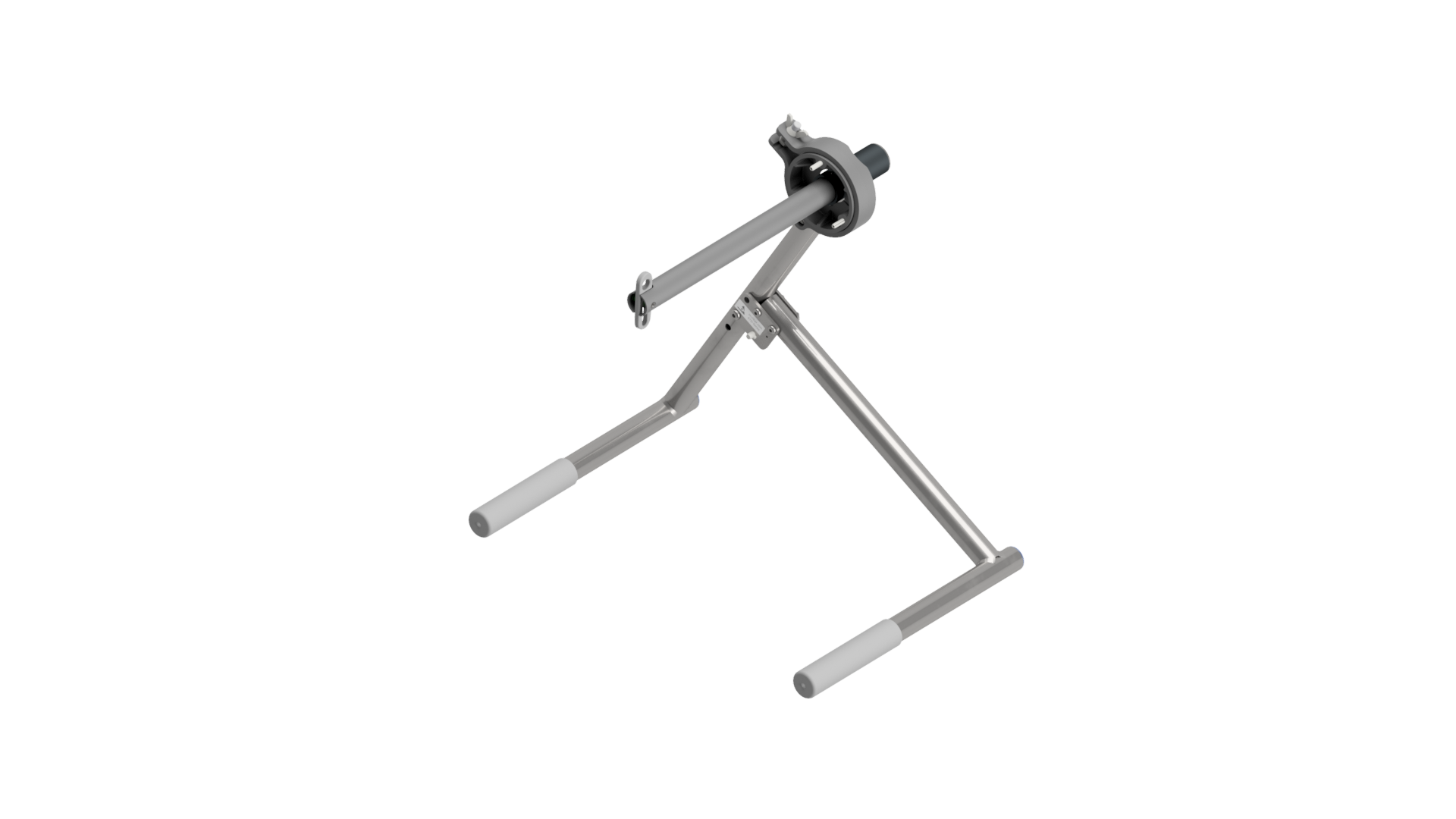

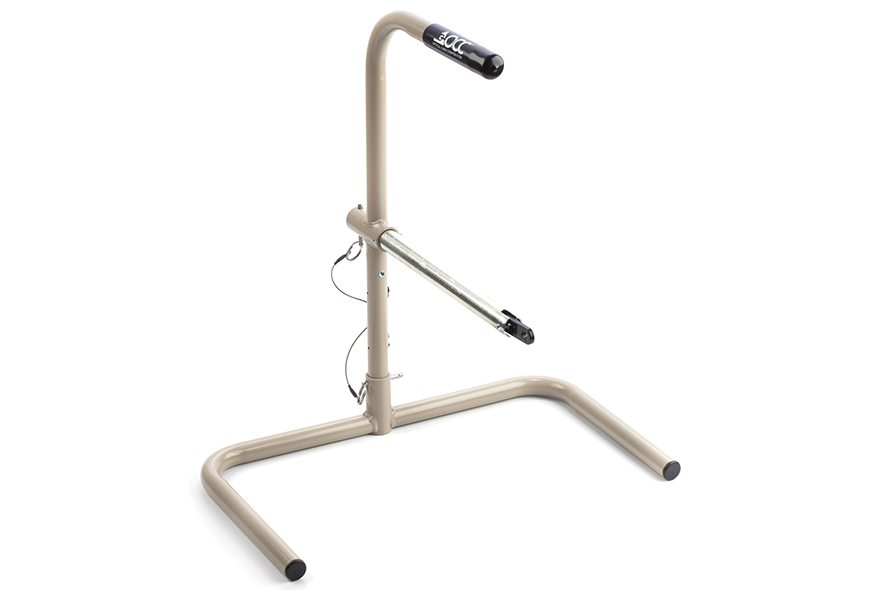

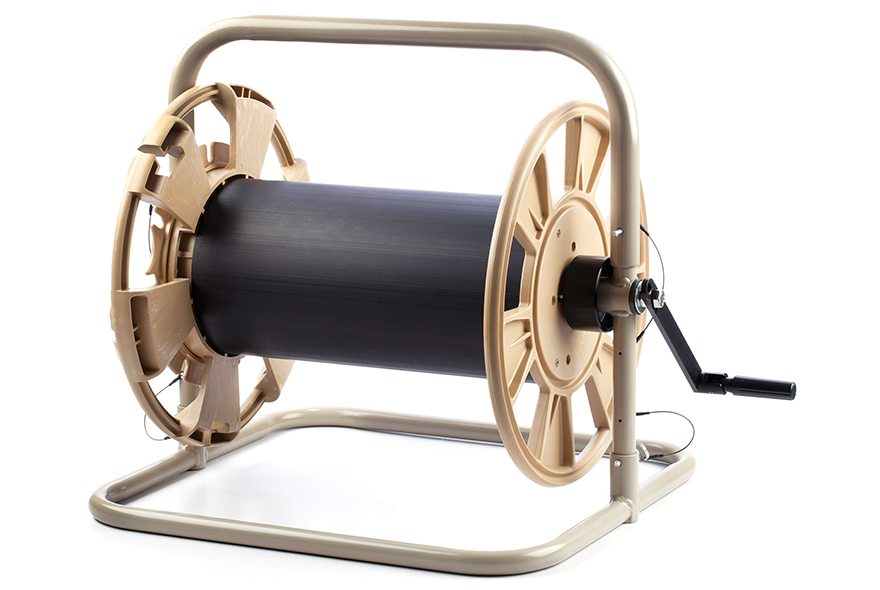

The OCC MARS® reel can be used with simple deployable axials (“broom sticks”) or with integrated A-Frames, cable acquisition cradles, transit case systems, tripods, bumper mounts, backpacks and backpacks with fiber optic slip rings. The MARS reel itself incorporates options for fiber optic cleaning kits, flip out handle, 30ft built in divider, connector cradle design, and stackable features. All these features (with a lower weight, than common reel systems) make MARS the most advanced fiber optic reeling system available in today’s market!


  • Mobile Emergency Telecommunications Stations
  • Mobile Tactical Shelters
  • United States Army, Navy, and Marine Corps Military Tactical Deployments
  • Broadcast
  • Emergency Restoration and Deployable Communications


  • Turnkey transit case with deployable cradle secures reels, while built-in cradle enables fast deployment without additional set up

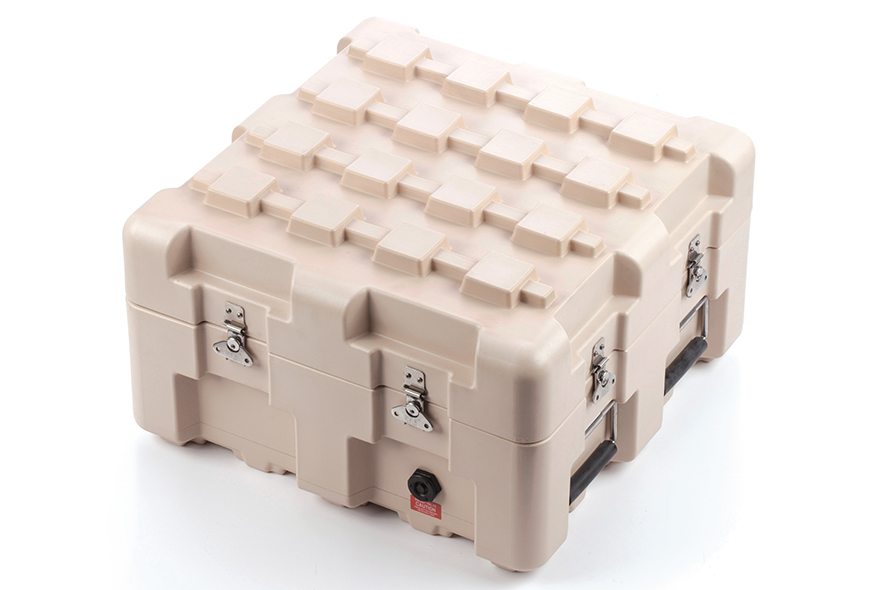

  • Interlocking waffle pattern enables secure stackability of cases during transit
  • Secure latching system holds tight even in rough conditions

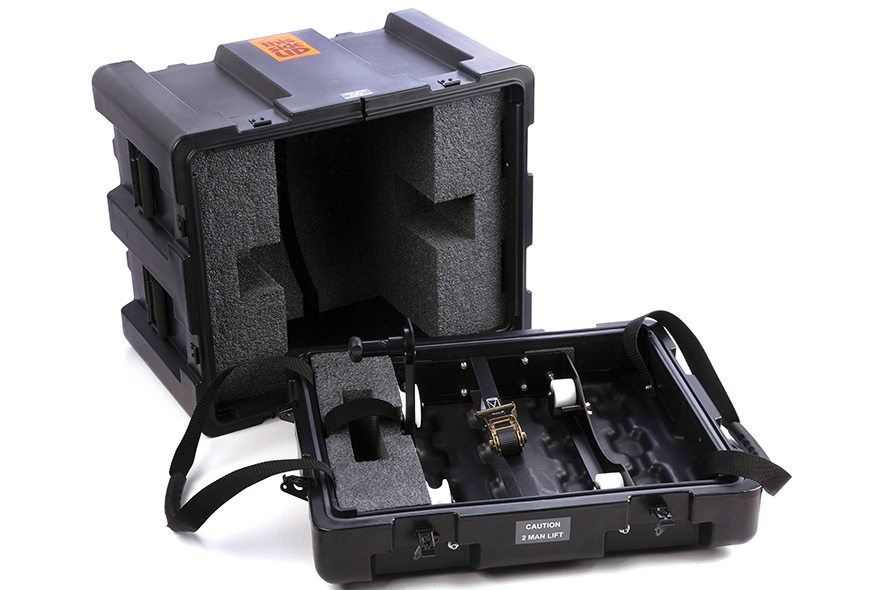

  • Industrial foam lining maintains a tight fit around reels during transit
  • Pressure relief valve allows for pressure equalization in high altitude conditions

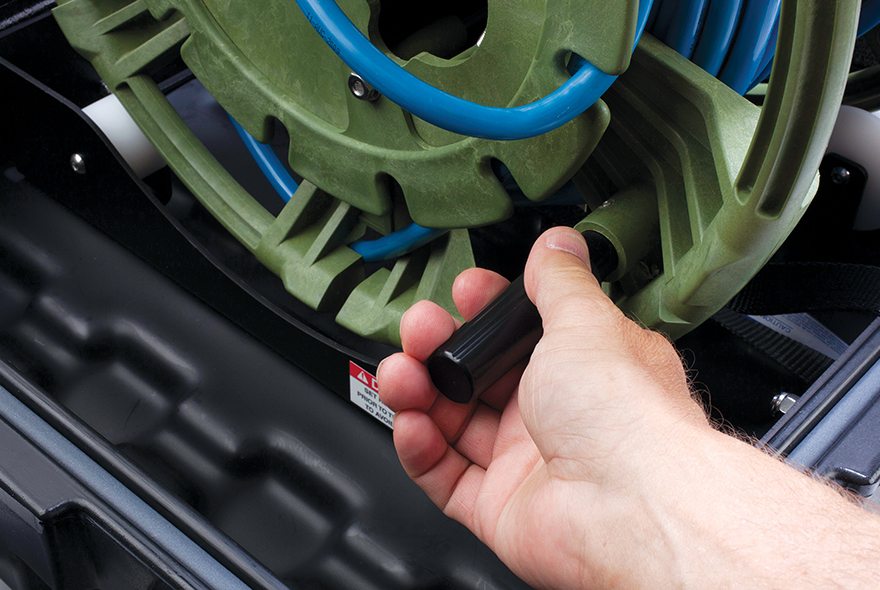

  • Case and cradle designed to work seamlessly with deployable handle on reels

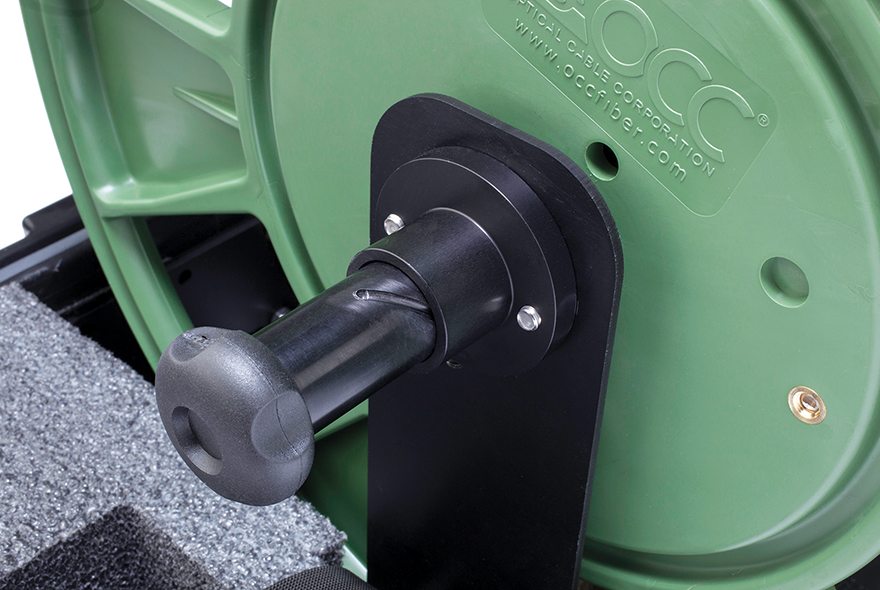

  • Reel lock secures reel during transit
  • Modular reel lock on cradle allows reels to be installed or removed from cradle

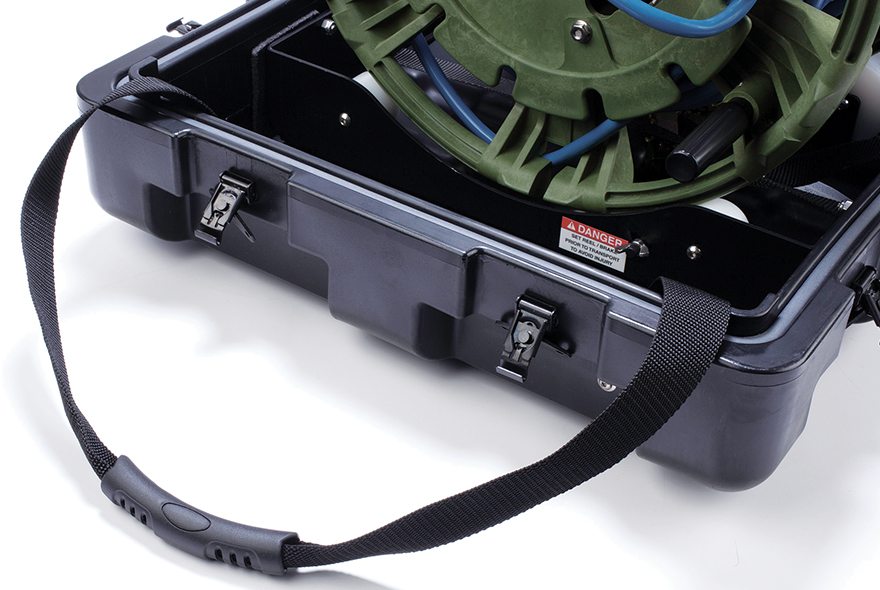

  • Integrated carry straps on base allow for two person deployment

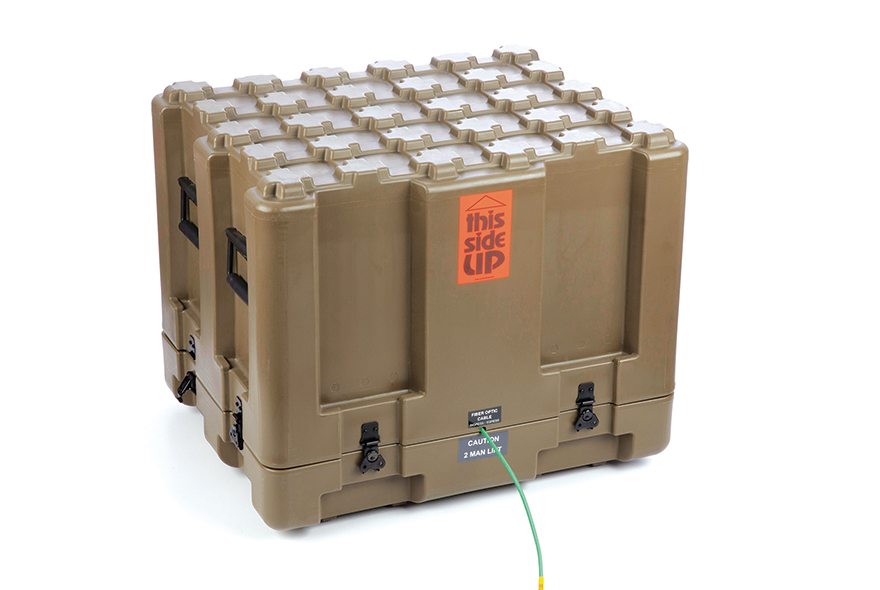

  • Mouse holes allow cable to be deployed with case lid on base

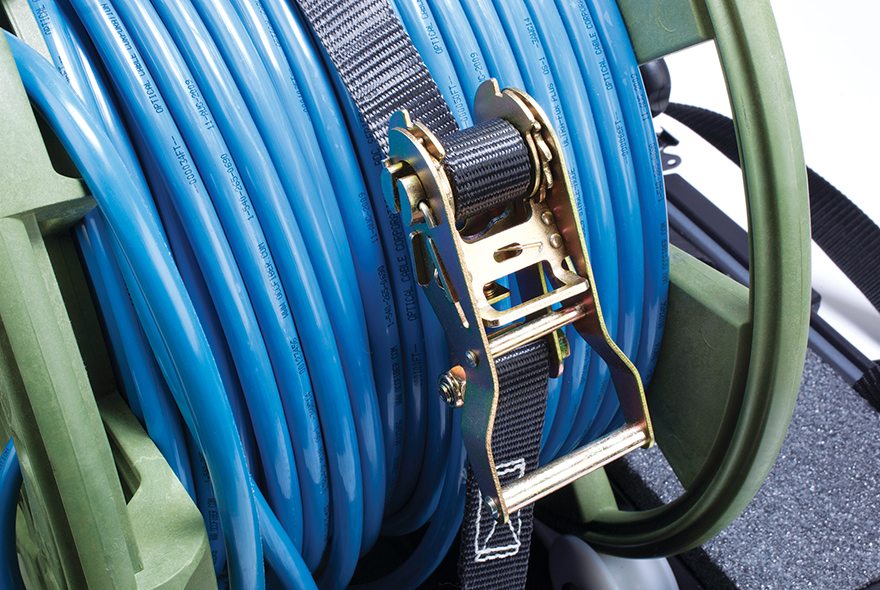

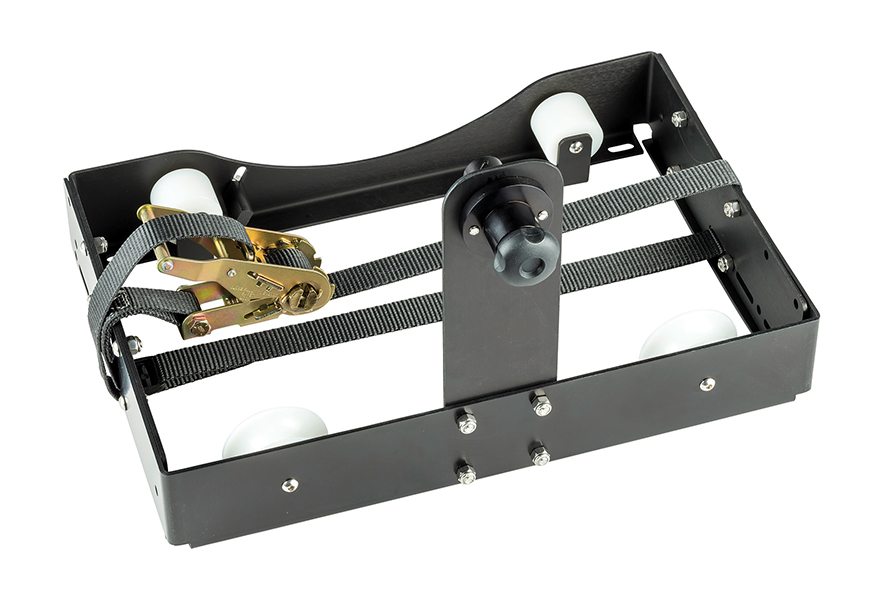

  • Shipping strap provides additional support to reel in cradle during transit
  • Utility pouch area provides storage for cleaning kits


Download Drawing(s)
Part Number Description PDF DWG/ZIP
ACC-0500-Y Transit case with cradle for 500M reel n/a n/a
ACC-0750-Y Transit case with cradle for 750M reel n/a n/a
ACC-1000-Y Transit case with cradle for 1000M reel n/a n/a

Replace "Y" with color code: B = black, G = green, T = desert tan.

Instruction Sheets

Related Documents

Please Login Here to access additional documents.

Connected21: Military Applications

OCC’s Modular Advanced (MARS) Reel System

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
