TERAX™ Enclosures

Installation zone RECOMMENDATION
1
1
1
1

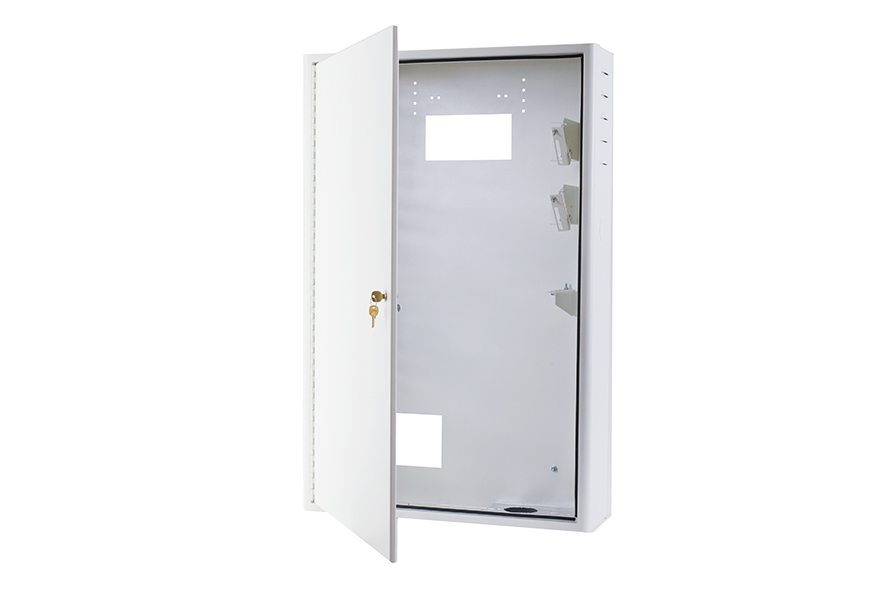

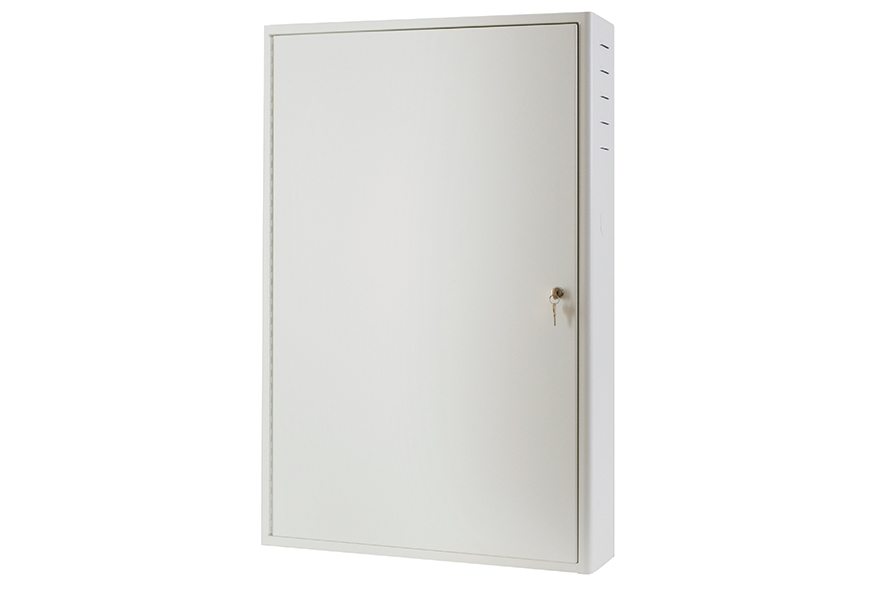

The TERAX enclosures are designed explicitly for applications requiring large zone distribution capabilities and easy installation. These cabinets offer a modular solution for housing telecommunications and networking equipment in locations requiring a safe and secure environment.

Features

  • Holds up to 4RU of passive products and up to 3RU of active equipment

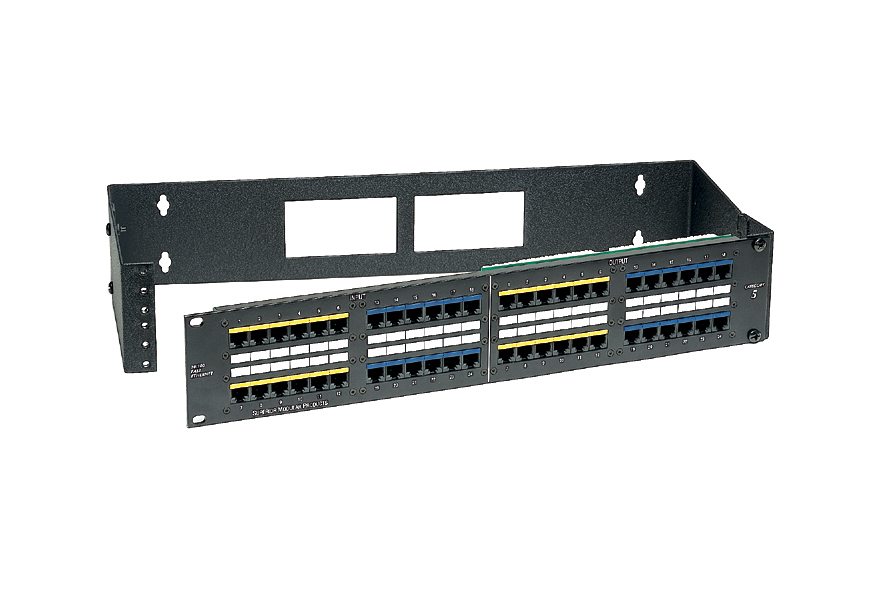

  • Design accepts all OCC Copper rack-mount patch panels
  • Patch panel brackets rotate 90° allowing for easy installs
  • Ideal cable management allows adequate space for routing and managing patch cords
  • Enclosures have 16 gauge CRS welded construction
  • Durable powder coat finish protects equipment in isolated locations
  • Load capacity: 100lbs.

Specifications

Download Drawing
Part Number Description Dimensions Load Rating RU Ship Weight PDF DWG/ZIP
TERAX2 Telecom equipment remote access enclosure, select model, mounts 2 patch panels, cylinder lock included 40"H x 27.12"W x 6.88"D 100 lbs 4 Download Download
TERAX2S Telecom equipment remote access enclosure, standard model, mounts 2 patch panels, lock tab or padlock 40"H x 27.12"W x 6.88"D 100 lbs 4 Download Download
TERAX-FK TERAX fan kit Download Download

Instruction Sheets

Related Documents

Please Login Here to access additional documents.

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
