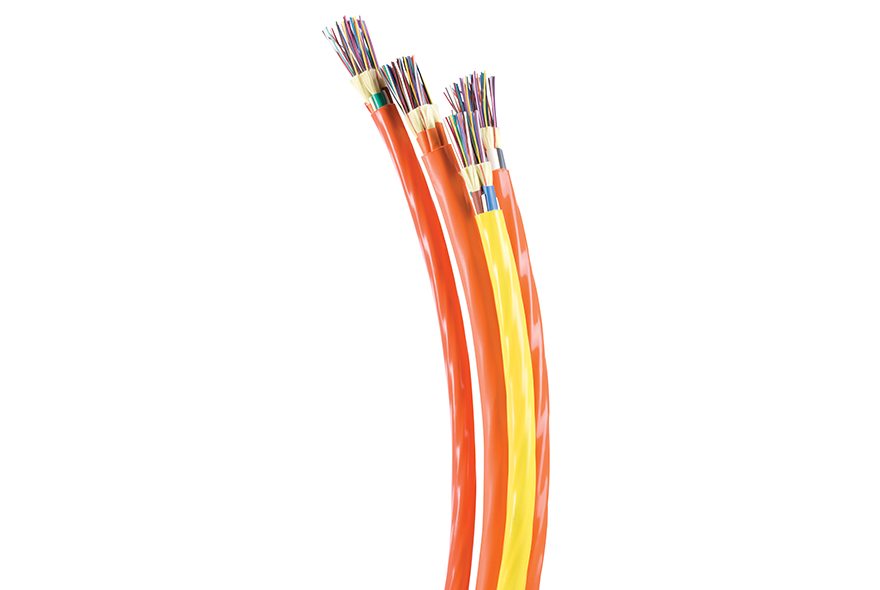

G-Series Subgrouping – Plenum Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Used in trunking, LAN and distribution applications where versatile installation capability is required for ducts, plenums, and air-handling spaces
  • Design allows subcables to be routed to multiple locations such as wiring racks and closets
  • Suitable for both indoor plenum and outdoor installation – no need to splice outdoor cable to indoor cable at the building entrance
  • 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
  • No need to splice outdoor cable to indoor cable at building entrance
  • High crush resistance may eliminate the need for innerduct

Applications

  • Used in trunking, LAN and distribution applications where versatile installation capability is required for ducts, plenums, and air-handling spaces
  • Design allows subcables to be routed to multiple locations such as wiring racks and closets
  • Suitable for both indoor plenum and outdoor installation - no need to splice outdoor cable to indoor cable at the building entrance

COST SAVINGS

  • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
  • No need to splice outdoor cable to indoor cable at building entrance
  • High crush resistance may eliminate the need for innerduct

Features

  • High performance components and construction
  • UL Listed in accordance with NEC sections 770.179(a) for use in ducts, plenums and air-handling spaces
  • Cable materials are Indoor/Outdoor - UV, water and fungus resistant
  • Wide operating temperature range of -40°C to +85°C

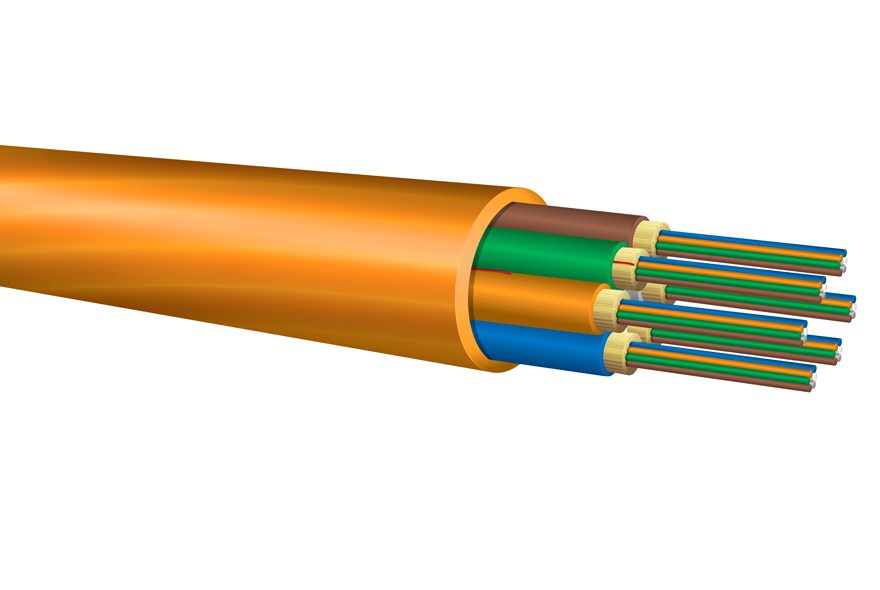

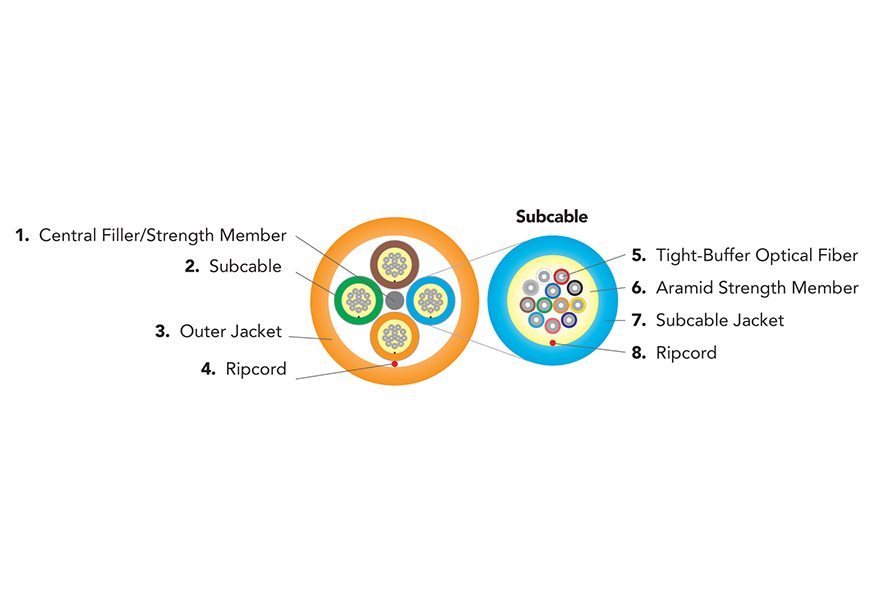

  • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
  • Multifiber color-coded subcables, each similar to the D-Series Distribution cable, are easy to identify for improved cable management during installation
  • Best design for multimode and single-mode fiber hybrid cables
  • Available with 6-fiber (4.5mm) or 12-fiber (5.5mm) subcables
  • Jacket highly chemical resistant for installation in harsh industrial environments
  • Interlocking armor can be applied to cable as an alternative to conduit installation

Characteristics

Characteristic6 Fiber Subunits12 Fiber Subunits
Operating Temp-40°C to +85°C-40°C to +85°C
Storage Temp-40°C to +85°C-40°C to +85°C
Install Temp0°C to +60°C0°C to +60°C
Flame RetardancyUL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resist2100 N/cm2100 N/cm
Impact Resist1000 impacts1000 impacts
Flex Resist2000 cycles2000 cycles
Jacket TypeKK

Standards

Optical Cable Corporation Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1651
  • UL1666
  • ANSI/NFPA 262
  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598

Specifications

6-Fiber (4.5mm) Subcables

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

12GB012K***9*R 14.1
(0.6)
217.0
(146.0)
3,800
(850)
1,200
(270)
21.2
(8.3)
21.2
(8.3)
18GB018K***9*P 14.1
(0.6)
211.0
(142.0)
4,700
(1,060)
1,500
(340)
21.2
(8.3)
21.2
(8.3)
24GB024K***9*P 14.1
(0.6)
206.0
(138.0)
5,600
(1,260)
1,800
(400)
21.2
(8.3)
21.2
(8.3)
30GB030K***9*P 14.7
(0.6)
243.0
(163.0)
7,500
(1,690)
2,400
(540)
22.1
(8.7)
22.1
(8.7)
36GB036K***9*P 16.1
(0.6)
262.0
(176.0)
8,900
(2,000)
2,850
(640)
24.2
(9.5)
24.2
(9.5)

12-Fiber (5.5mm) Subcables

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

24GX024K***9*P 15.4
(0.6)
273.0
(183.0)
4,600
(1,030)
1,500
(340)
23.2
(9.1)
23.2
(9.1)
36GX036K***9*P 15.4
(0.6)
263.0
(177.0)
5,900
(1,330)
1,950
(440)
23.2
(9.1)
23.2
(9.1)
48GX048K***9*P 15.4
(0.6)
254.0
(170.0)
7,200
(1,620)
2,400
(540)
23.2
(9.1)
23.2
(9.1)
72GX072K***9*P 18.4
(0.7)
317.0
(213.0)
11,300
(2,540)
3,750
(840)
27.6
(10.9)
27.6
(10.9)
