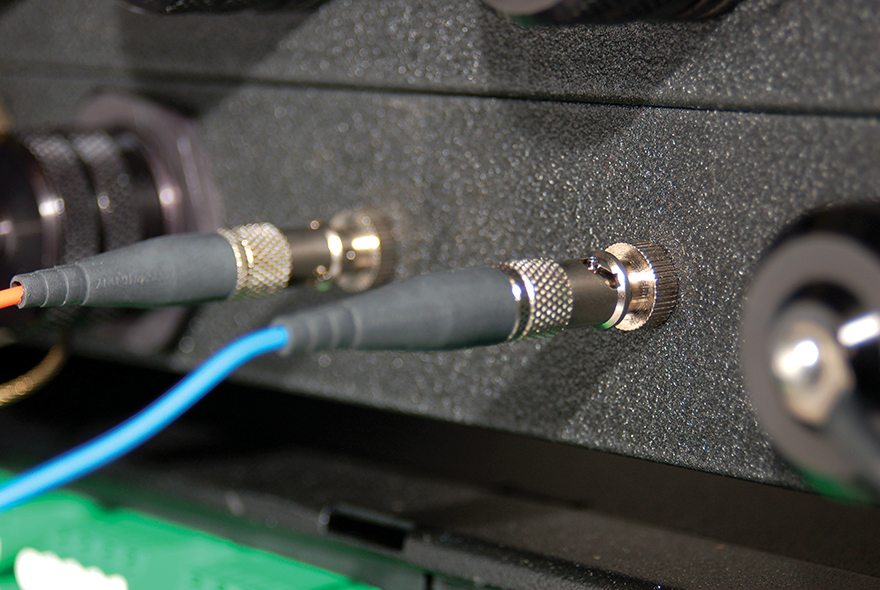

Single Terminus (ST) Connectors

Installation zone RECOMMENDATION
1
1
1
1

OCC’s ruggedized ST connector and ST adapter products represent one of the best single-fiber connection systems available to industries where the ability to withstand extreme temperature change, shock, vibration, or corrosion is required. We offer both commercial-off-the-shelf (COTS) ST’s for harsh environment applications and the fully qualified, Military ST (MIL) that meets or exceeds 100% of the military specification MIL-DTL-83522E.

Applications

  • Navy Shipboard Systems
  • Army and Marine Corp TAC COM
  • Pierside/Ship-to-Shore Communications
  • Disaster Recovery Emergency Communications
  • Commercial and Military Antennas and Radars
  • Mobile Tactical Shelters
  • Mobile or Remote Broadcast Harsh Environments
  • Oil and Gas Industries

Features

  • Nickel-plated brass or stainless steel options are available
  • Available to support single-mode and multimode fibers
  • Accommodate fiber cables with outer jackets from 2.0mm to 3.0mm outer diameters

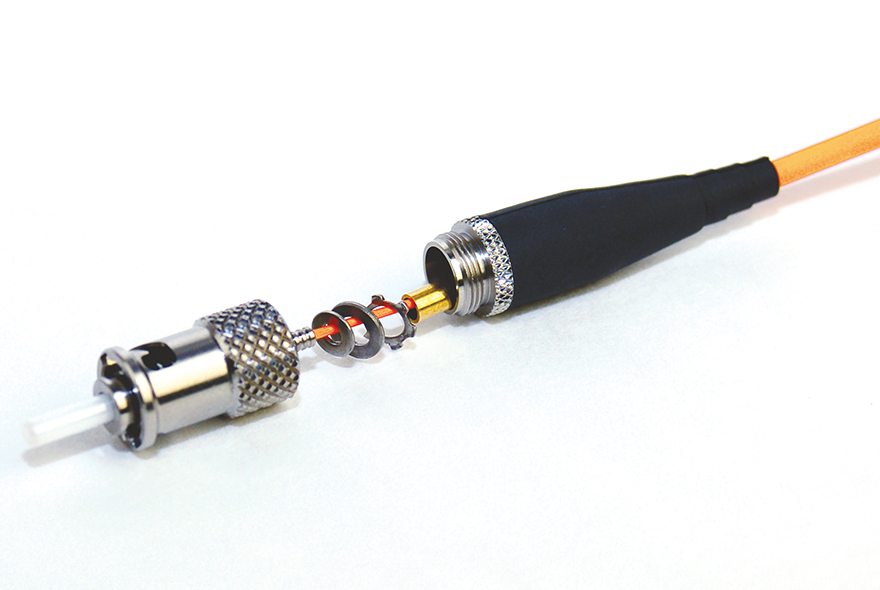

  • The locking version features washers that prevent inadvertent optical disconnect due to stress on the cable, and are more resistant to cable pull force or repeated shock and/or vibration
  • Up to 50 lbs. of pull strength protection is readily achievable using standard termination techniques
  • A convenient screw-on boot feature eliminates the need for a cumbersome boot tool
  • The MIL ST features a higher spring force that passes Navy High Shock (explosive) requirements
  • A slightly lower spring force allows OCC’s COTS ST connectors to provide the same optical performance as the MIL ST in standard shock and vibration while also allowing successful coupling with composite adapters and devices
  • OCC’s ST’s feature a closed entry design which provides both easier mating when new and retains its mating profile for easier mating over repeated in-field mating cycles
  • Ability to inter-mate with ST connectors in the field

Standards

Specification

Parameter

Range

DNX

DNY

ANX

ANY

COTS

NY

Insertion Loss

Multimode (50, 62.5/125μm)

0.35 dB Typ., 0.75 dB Max.

X

X

X

X

Insertion Loss

Single-Mode (9/125μm)

0.40 dB Typ., 0.75 dB Max.

X

X

X

X

Return Loss

Single-Mode (9/125μm)

-50 dB Typ., -40 dB Max.

X

X

X

X

Weight

Non-Terminated

< 20 GR.

X

X

X

X

X

X

Temperature

Operational

-46° C to 85° C

X

X

X

X

X

X

Temperature

Storage

-62° C to 85° C

X

X

X

X

X

X

Tensile Loading1

MIL-STD-1344A

Method 2009 at 180N

X

X

X

X

Tensile Loading2

MIL-STD-1344A

Method 2009 at 230N

X

X

X

Flex Life

MIL-STD-1344A, M2017

Method 2017, 1000 Cycles Each

X

X

X

X

X

X

Twist

EIA-455-36

1000 Cycles, ±90° Twist

X

X

X

X

X

X

Mating Durability

EIA-455-21

500 Cycles

X

X

X

X

X

X

Impact

TIA/EIA-455-2, Method B

8 Drops

X

X

X

X

X

X

Vibration

TIA/EIA-455-11C, Cond. C

Condition II & VII, 10 GS, 1.5 Hr./Axis

X

X

X

X

X

Vibration3

TIA/EIA-455-11C, Cond. VI

Condition F, 1.5 Min/Axis

X

X

X

X

X

Specifications

Part Number Description Type
M83522/16-DNX-B MIL ST, Screw-On Boot, Non-Locking, Multimode, N.P.B. Nickel Plated Brass
QUICK SHIP denotes products that are in high demand and are therefore part of our stocking program. If ordered by 12pm EST, these items will ship the same day, subject to availability. In some cases, larger quantities may not be available to ship the same day, but can be available in only a few days.
M83522/16-DNY-B MIL ST, Screw-On Boot, Non-Locking, Single-mode, N.P.B. Nickel Plated Brass
QUICK SHIP denotes products that are in high demand and are therefore part of our stocking program. If ordered by 12pm EST, these items will ship the same day, subject to availability. In some cases, larger quantities may not be available to ship the same day, but can be available in only a few days.
M83522/16-ANX-B MIL ST, Screw-On Boot, Locking, Multimode, N.P.B. Nickel Plated Brass
QUICK SHIP denotes products that are in high demand and are therefore part of our stocking program. If ordered by 12pm EST, these items will ship the same day, subject to availability. In some cases, larger quantities may not be available to ship the same day, but can be available in only a few days.
M83522/16-ANY-B MIL ST, Screw-On Boot, Locking, Single-mode, N.P.B. Nickel Plated Brass
QUICK SHIP denotes products that are in high demand and are therefore part of our stocking program. If ordered by 12pm EST, these items will ship the same day, subject to availability. In some cases, larger quantities may not be available to ship the same day, but can be available in only a few days.
SVST6011AL COTS ST, Screw-On Boot, Non-Locking, Multimode, N.P.B. Nickel Plated Brass
SVST6021AL COTS ST, Screw-On Boot, Non-Locking, Single-mode, N.P.B. Nickel Plated Brass
SVST5011AL COTS ST, Screw-On Boot, Locking Boot, Multimode, N.P.B Nickel Plated Brass
SVST5021AL COTS ST, Screw-On Boot, Locking Boot, Single-mode, N.P.B. Nickel Plated Brass
M83522/17-NY-B MIL ST Adapter, Multi- or Single-mode, N.P.B. Nickel Plated Brass
SVSTB21A0 COTS ST Adapter, Ceramic Split Sleeve, N.P.B. Nickel Plated Brass
SVSTP21A0 Metal ST Dust Cover with Lanyard, N.P.B. Nickel Plated Brass

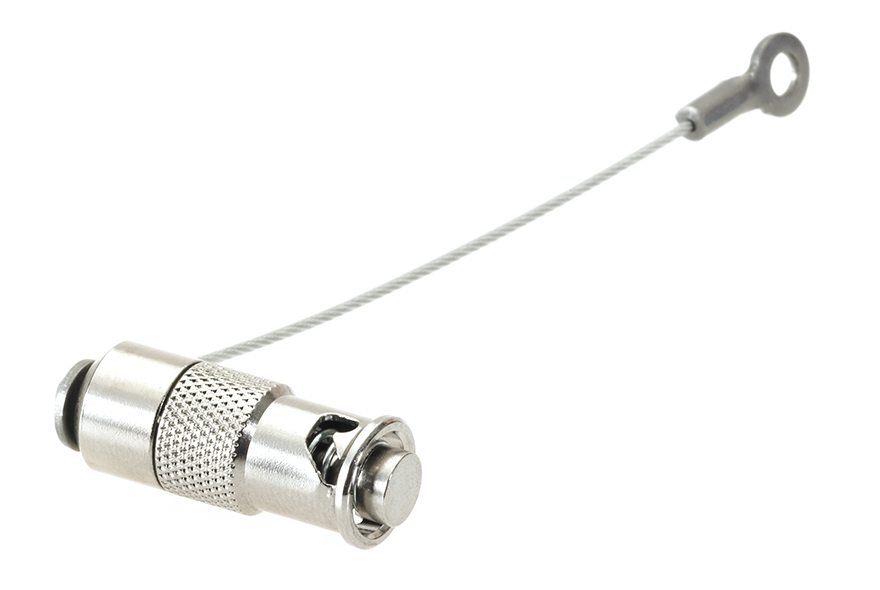

SVSTQ21A0 Metal ST Adapter Dust Cover with Lanyard, N.P.B. Nickel Plated Brass
M83522/16-DNX-S MIL ST, Screw-On Boot, Non-Locking, Multimode, S.S. Stainless Steel
M83522/16-DNY-S MIL ST, Screw-On Boot, Non-Locking, Single-mode, S.S. Stainless Steel
SVST6012AL COTS ST, Screw-On Boot, Multimode, S.S. Stainless Steel
SVST6022AL COTS ST, Screw-On Boot, Single-mode, S.S. Stainless Steel
SVST5012AL COTS ST, Screw-On Boot, Locking Boot, Multimode, S.S. Stainless Steel
SVST5022AL COTS ST, Screw-On Boot, Locking Boot, Single-mode, S.S. Stainless Steel
M83522/17-NY-S MIL ST Adapter, Multi- or Single-mode, S.S. Stainless Steel
SVSTB22A0 COTS ST Adapter, Ceramic Split Sleeve, S.S. Stainless Steel
SVSTP22A0 Metal ST Dust Cover with Lanyard, S.S. Stainless Steel
SVSTQ22A0 Metal ST Adapter Dust Cover with Lanyard, S.S. Stainless Steel
PC83522/16-20-S Accommodates 3.0mm cable O.D. Ordered separately.
PC83522/16+22 Accommodates 2.5. cable O.D. Ordered separately.
PM83522/16-05-99B Accommodates 2.0-2.4. cable O.D. Included in all MIL-ST kits
PA35395-99-017 Accommodates 2.0-2.1. cable O.D. Included in all MIL-ST kits
