OCC introduces L-JACK®, a robust fiber optic duplex LC connector that couples the small form factor of traditional LCs with the known ruggedness of OCC harsh environment connectors. OCC’s L-JACK connector is designed for environmentally challenging situations and offers easy installation with proven optical performance. Available in a broad range of configuration possibilities, the L-JACK is ideal for installations in extreme mobile environments, industrial applications, and any install that requires excessive fiber optic protection.

Features

  • Conventional fiber optic connectors were never intended for, or able to withstand, the rough handling of deployable and harsh applications. With the OCC L-JACK fiber optic connector, users can expect:
  • Unsurpassed ruggedized connector design. OCC’s L-JACK is manufactured with optimum metal materials that can withstand wide temperature ranges and provide extreme impact resistance, unlike the competition’s polymer versions. The L-JACK’s robust design is ideal for almost any harsh environment application where survivability is a factor. Multiple plating options complement the resilient nature of this connector to reinforce its mechanical performance.
  • Superior optical performance. Compliant with IEC 61540-20, Telecordia GR-326, and TIA-604-10-A standards, the L-JACK connector accommodates standard LC and is available in multimode, single-mode and single-mode APC polish. The threaded coupling ensures proper fiber alignment and reinforces positive mating of the LC connector to the receptacle.
  • IP-68 environmental sealing. OCC’s L-JACK prevents dirt and moisture from deterring optical connections and protects the duplex LC connector from harsh environments where mud and water are present.

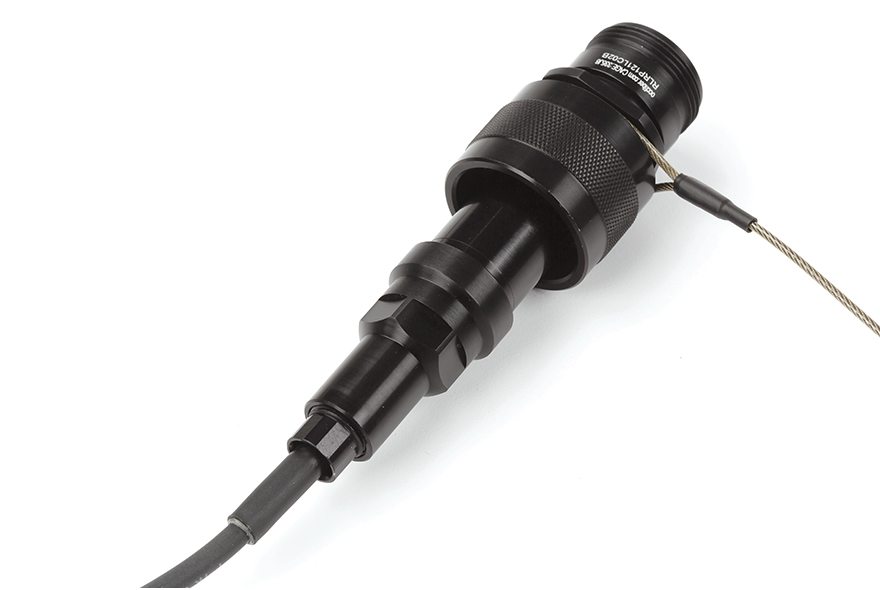

  • Specialized strain relief for intense tensile loading. When terminated with OCC’s Distribution or Breakout style cables, the L-JACK backshell enables up to 400 pounds of pull strength, allowing the fiber cable to withstand intense tensile loading through difficult hauls.

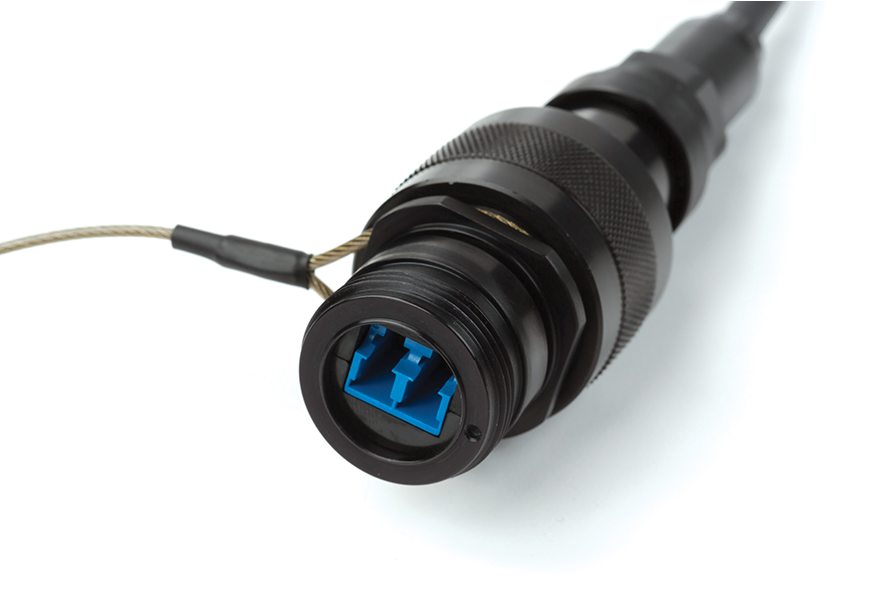

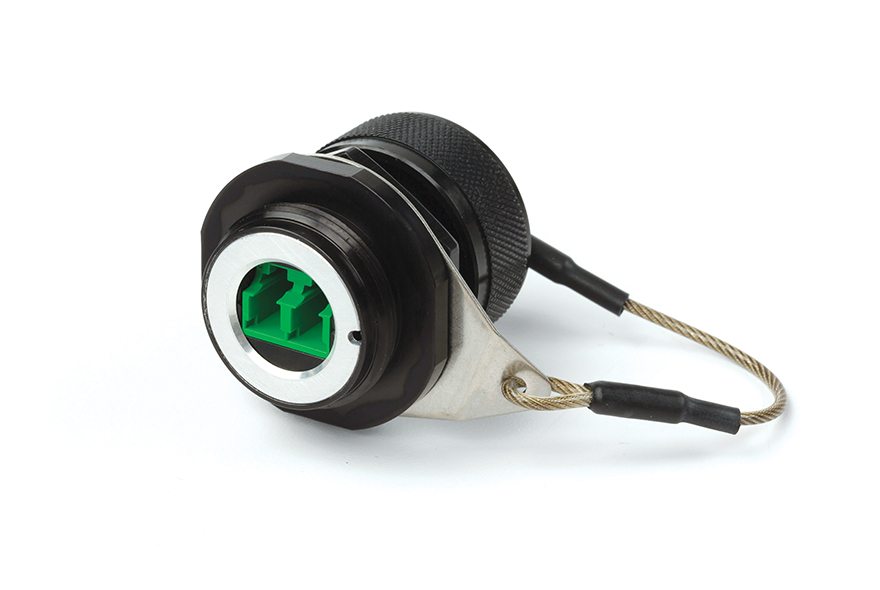

  • Variety of configurations to fit any application need. Once terminated, the L-JACK plug with backshell is then used to interconnect with a variety of L-JACK receptacles, including flange-mount, jam-nut and D38999 jam-nut form receptacles. While there are many similar types of connectors on the market, only the OCC L-JACK can bring proven durability and performance to deployable and harsh environment communications. Ideal for quick equipment connections, the L-JACK fiber optic connector is a logical choice for the most reliable communication networks.

Standards

Performance Specifications

 Parameter  Specification  Performance
 Insertion Loss (IL) (UPC)  EIA/TIA-455-171  0.25dB - Typical;  0.50dB - Maximum
 Return Loss (RL) (UPC)  EIA/TIA-455-107A  Minimum 0.50dB
 Operational Temperature  EIA/TIA-455-5C  -40ºC to +85ºC
 Storage Temperature  EIA/TIA-455-5C  -40ºC to +85ºC
 Temperature Humidity Cycling  EIA/TIA-455-5C  -40ºC to +71ºC at 95% RH, 240 hrs.
 Dust Test  IEC 60529 IP68  8 hrs dust exposure with 20 mbar
 Water Submersion  IEC 60529 IP68  48 hrs. immersion/1 meter water
 Cable Retention1  EIA/TIA-455-6  400 lbs. for 10 minutes
 Mating Durability  EIA/TIA-455-21  500 cycles
 Impact  EIA/TIA-455-2C  8 drops, 2.4 meters
 Vibration  EIA/TIA-455-11  10-55Hz, 2 hr./axis, 3 axis
 Mechanical Shock  EIA/TIA-455-14A  Condition C, 5 shocks/axis
 Crush  EIA/TIA-455-26A  450 lbs.

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
RLRB121LP01A L-JACK plug, dust cap, short body, (2) LCs, beige, MM n/a n/a
RLRB121LP02B L-JACK plug, dust cap, short body, (2) LCs, blue, SM n/a n/a
RLRB121LP02E L-JACK plug, dust cap, short body, (2) LCs, green, SM/APC n/a n/a
RLRM121LC01A L-JACK inline receptacle with back shell, dust cap, short body, (2) LCs, beige, MM n/a n/a
RLRM121LC02B L-JACK inline receptacle with back shell, dust cap, short body, (2) LCs, blue, SM n/a n/a
RLRM121LC02E L-JACK inline receptacle with back shell, dust cap, short body, (2) LCs, green, SM/APC n/a n/a
RLRD121LC01A L-JACK receptacle, flange-mount, dust cap, beige, MM n/a n/a
RLRD121LC02B L-JACK receptacle, flange-mount, dust cap, blue, SM n/a n/a
RLRD121LC02E L-JACK receptacle, flange-mount, dust cap, green, SM/APC n/a n/a
RLRK121LC01A L-JACK receptacle, jam-nut, dust cap, beige, MM n/a n/a
RLRK121LC02B L-JACK receptacle, jam-nut, dust cap, blue, SM n/a n/a
RLRK121LC02E L-JACK receptacle, jam-nut, dust cap, green, SM/APC n/a n/a
