Category 6A F/UTP Copper Cable

Installation zone RECOMMENDATION
1
1
1
1

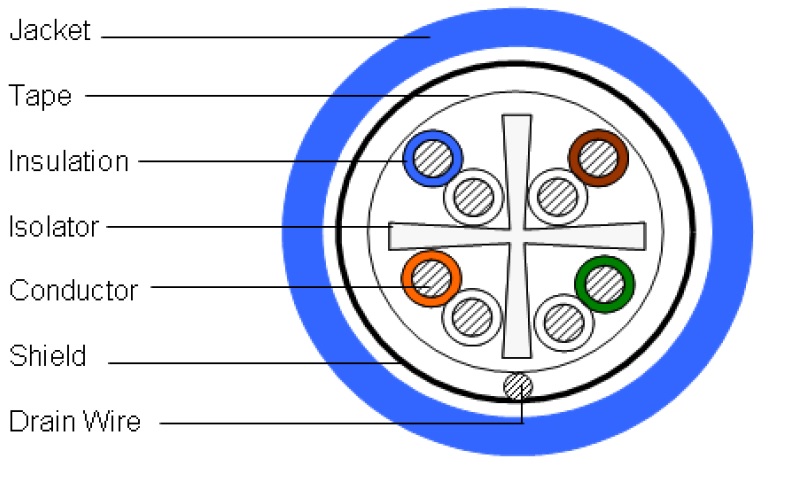

Construction

  • Conductor:
    23 AWG (.0226") solid bare copper
  • Color Code:
    Pair 1: Blue–White
    Pair 2: Orange–White
    Pair 3: Green–White
    Pair 4: Brown–White

Jacket

  • Riser rated – flame-retardant PVC, UL listed type FT4 per UL 444
  • Plenum rated – low-smoke flame-retardant PVC, UL listed type FT6 per UL 444

Cabling

  • F/UTP – Four twisted pairs are cabled around a star filler and wrapped with an aluminum polyester tape

Category 6A F/UTP Electrical characteristics*:

  • Characteristic Impedance: 100 ± 15Ω (1.0 to 500 MHz)
  • Maximum Conductor Resistance: 8Ω / 100 Meters @ 20° C
  • Maximum Resistance Unbalanced: 4%
  • Maximum Mutual Capacitance: 5.6nF/100 meters @ 1kHz
  • Nominal velocity of propagation (NVP): CMR 68%; CMP 70%

Applications

  • 10GBASE-T Ethernet
  • 2.5/5GBASE-T Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 155/622/1000 Mbps ATM
  • Broadband Video
  • Analog Voice/VOiP
  • Supports all IEEE standards for DC power delivery over 4-pair cabling when installed in accordance with TIA Telecommunications Systems Bulletin TSB-184-A, Guidelines for Supporting Power Delivery Over Balanced Twisted-Pair Cabling
  • All other applications developed for operation over Category 6A cabling

Features

  • Tested from 1 to 500MHz and offers guaranteed headroom to TIA-568-C.2 Category 6A cable requirements
  • Guaranteed 10GBASE-T performance compliance
  • Components are twisted into pairs with varying left-hand lays to minimize cross-talk
  • Supports all IEEE standards for DC power delivery over 4-pair cabling when installed in accordance with TIA Telecommunications Systems Bulletin TSB-184-A, Guidelines for Supporting Power Delivery Over Balanced Twisted-Pair Cabling.
  • Compatible with OCC Cat6A jacks and patch panels for optimal system performance
  • Available in riser and plenum rated

Standards

  • TIA 568-C.2 Category 6A
  • IEE 802.3an (Clause 55.7) 100 meter link segment requirements
  • NEC/CEC Type CMR (UL 1666) Riser
  • NEC/CEC Type CMP (NFPA 262) Plenum

Specifications

Download Drawing
Part Number Description UOM OD Weight PDF DWG/ZIP
OCC-FTP6A4R-XX Category 6A F/UTP CMR Cable Reel 0.296" 39lbs./1000 ft. Download Download
OCC-FTP6A4PLM-XX Category 6A F/UTP CMP Cable Reel 0.276" 39lbs./1000 ft. Download Download
Replace "xx" with color code: 05 = blue, 07 = white. Other colors available, contact OCC Inside Sales for colors.
