• PA8109 Jack Termination Tool

Category 6A – UMJ Outlet Jacks

Installation zone RECOMMENDATION
1
1
1
1

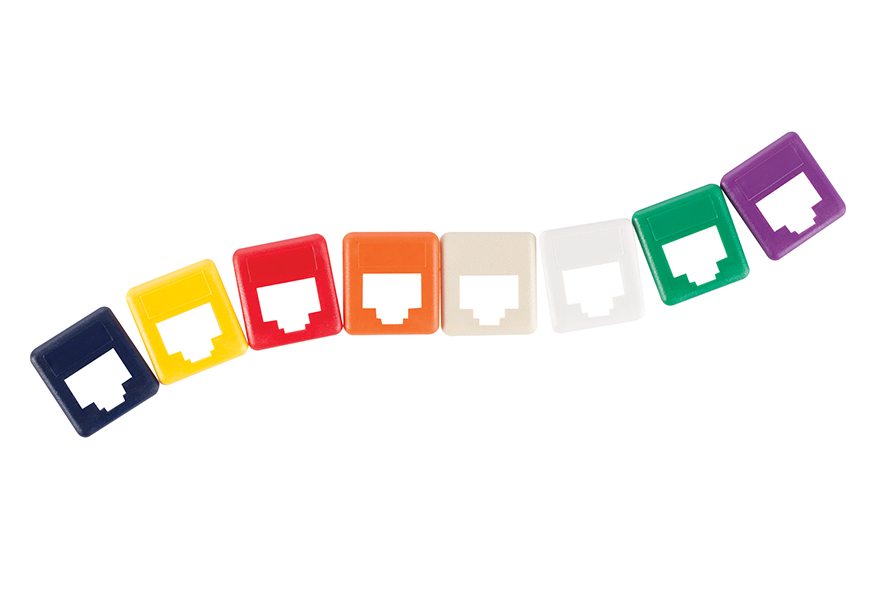

OCC's UMJ Category 6A jack offers a high-performance connecting hardware component for guaranteed 10 Gig performance. Using patented cross-talk reduction technology, OCC engineering has developed one of its highest performing component product yet. OCC's unique UMJ connector style offers users a versatile design for specifying and segmenting different color bezels in the network.

Applications

  • 10GBASE-T Ehternet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Broadband Video
  • 155/622 Mbps ATM
  • Analog Voice/VOiP
  • PoE+

Features

  • Meets IEC 60603-7 requirements
  • Guaranteed ISO and TIA Category 6A compliant
  • 110-style IDC contacts exceed TIA 568-C.2 requirements
  • TIA-568-C.2 Cat 6A component compliant
  • ISO-11801 Ed. 2 Cat 6A component compliant
  • High-performance contacts provide low cross-talk with improved mechanical robustness
  • One-piece stuffer cap included
  • Improved strain-relief system designed for Category 6A shielded cable
  • UL 1863 listed communications circuit accessory
  • Large easy-to-read color-coded labels
  • PoE+ compliant
  • Contact material- high-strength beryllium copper alloy
  • Contact plating- 50µm in gold over nickel
  • Insulation resistance- 500MΩ minimum
  • Dielectric withstand-1000 VAC RMS, AC 60Hz or 1414 VDC
  • DC current rating- 1.5A per conductor at 20°C ambient de-rated to 0.75A at 60°C ambient

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
U6Axx Category 6A UMJ Outlet Jack, UTP, Slimline Download Download
U6A50xx Category 6A UMJ Outlet Jack, UTP, 50 Pack Download Download
PA8109 Termination Tool, KMJ/UMJ Modular Jack Download n/a
Replace "xx" with color code from chart to the right.
