  • PA8109 Jack Termination Tool

Category 6A – KMJ Outlet Jacks

Installation zone RECOMMENDATION
1
1
1
1

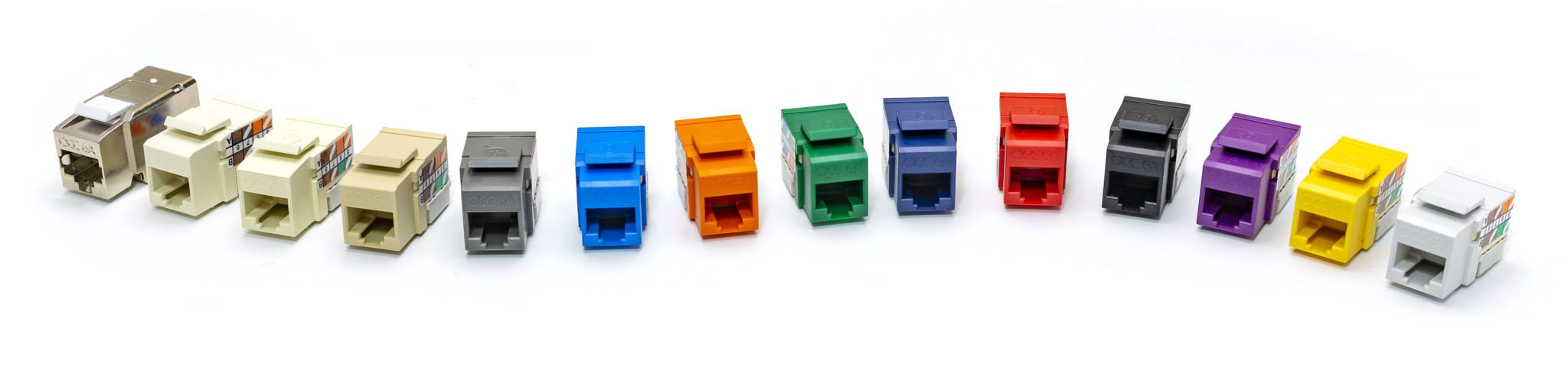

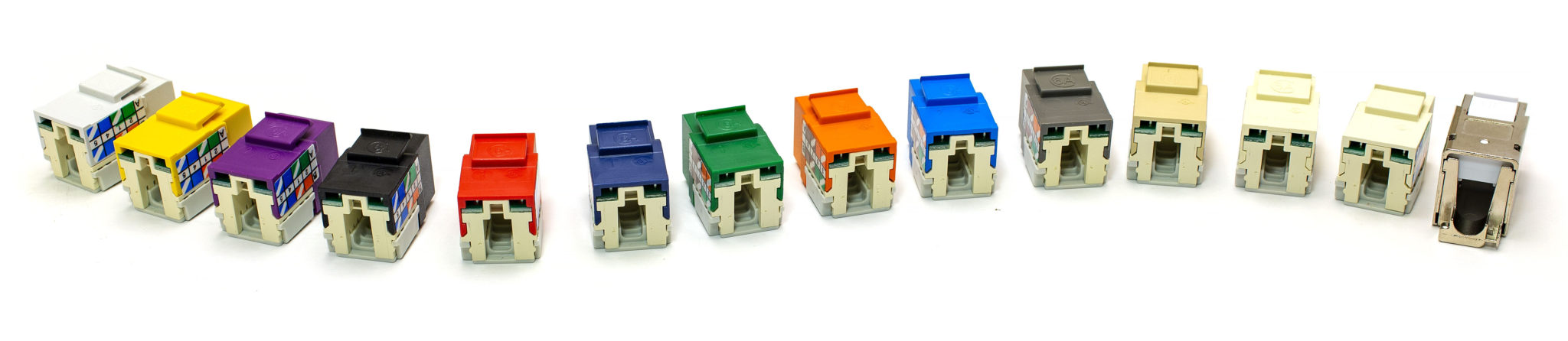

OCC’s Category 6A jack offers a high-performance 10 Gigabit connecting hardware component in a compact form factor. This RJ45 slim-line Category 6A jack is part of a comprehensive solution for high-performance 10G structured cabling systems. Using patented crosstalk reduction technology, OCC engineering has developed one of its highest performing component products yet. The slimline design supports high-density applications, allowing for 48 ports in a 1U panel for UTP and shielded applications, and is ideal for data center and 802.11AC wireless access points.

Applications

  • 10GBASE-T Ethernet
  • 2.5G/5GBASE-T Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Broadband Video
  • 155/622 Mbps ATM
  • Analog Voice/VOiP
  • PoE, PoE+, and PoE++

Features

  • Meets IEC 60603-7 requirements
  • Guaranteed ISO and TIA Category 6A compliant
  • 110-style IDC contacts exceed TIA-568-C.2 requirements
  • Slimline profile allows 48 ports in a 1U panel
  • TIA-568-C.2 Cat 6A and ISO 11801 Ed 2. Cat 6A component compliant
  • High-performance contacts provide low crosstalk with improved mechanical robustness
  • One-piece stuffer cap included
  • UL 1863 listed communications circuit accessory
  • Large, easy-to-read color-coded labels
  • Supports all IEEE Power over Ethernet (PoE) standards
  • Contact material: high-strength beryllium copper alloy
  • Contact plating: 50 μin gold over nickel
  • Insulation resistance: 500MΩ minimum
  • Dielectric withstand: 1000 VAC RMS or 1414 VDC
  • DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
K6Axx Category 6A KMJ Outlet Jacks, UTP - Unshielded, Slimline Download Download Quick Ship
K6A50xx Category 6A KMJ Outlet Jack, UTP, 50 Pack Download Download
PA8109 Termination Tool, KMJ/UMJ Modular Jack Download n/a

Replace "xx" with color code from chart to the right.

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
