Category 6A RJ45 Feed-Thru Couplers

Installation zone RECOMMENDATION
1
1
1
1

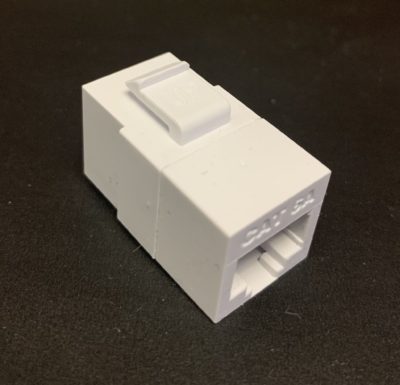

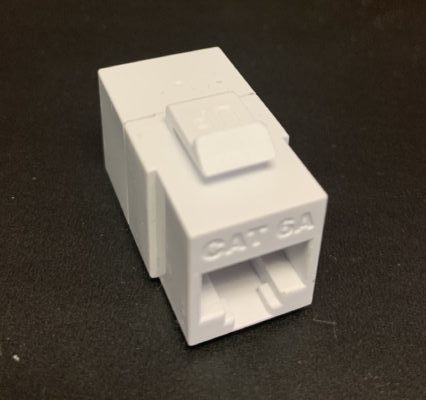

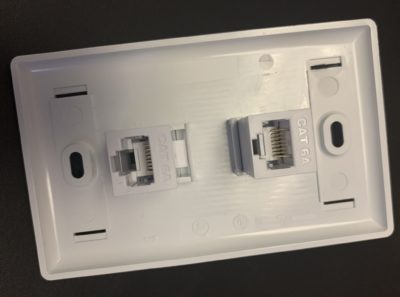

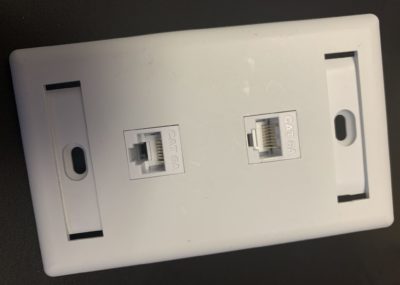

OCC’s Category 6A RJ45 Feed-Thru Couplers provide the capability to quickly deploy plug and play interconnect solutions when used with pre-terminated copper cable assemblies or patch cords. The Cat6A couplers meet Category 6A channel performance and fully support 10 Gigabit Ethernet and PoE applications . Compatible with OCC KMJ faceplates and multimedia panels and are available in both unshielded and shielded configurations.

Applications

• 10GBASE-T ETHERNET
• IEEE 802.3BT POWER OVER ETHERNET (PoE++)
• RJ-45 MODULAR INTERCONNECT FOR PRE-TERMINATED COPPER CABLE ASSEMBLIES

Features

• UNSHIELDED AND SHIELDED OPTIONS AVAILABLE
• SHIELDED VERSION ALSO AVAILABLE IN MULTIPLE COLORS (FRONT SIDE INTERFACE)
• COMPATIBLE WITH KMJ FACEPLATES AND PANELS

Standards

TRANSMISSION PERFORMANCE: MEETS ALL REQUIREMENTS SPECIFIED IN ANSI/TIA-568.2 FOR CATEGORY 6A CHANNELS.

• ENVIRONMENTAL RANGE:
o TEMPERATURE RANGE:
o STORAGE -40 TO 70° C
o OPERATIONAL -10 TO 80° C
o RELATIVE HUMIDITY (OPERATIONAL) MAXIMUM
o NONCONDENSING 93%

• ELECTRICAL:
o INSULATION RESISTANCE: 1MΩ MIN.
o DIELECTRIC WITHSTAND VOLTAGE:
o 1000 VAC RMS, 1 MIN.
o CONTACT RESISTANCE: 2 mΩ MAX.
o CURRENT RATING: 1.5 AMPS AT 20°C

• MATERIAL SPECS:
o HOUSING: HIGH IMPACT, FLAME RETARDANT PLASTIC.
o SPRING WIRE/CONTACT BLADES MATERIAL: PHOSPHOR BRONZE ALLOY PLATED WITH 50 MICRO-INCH OF GOLD.
o INSERTION / WITDRAWALS: ≥ 750

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
KMJ6AFTxx Category 6A KMJ In-Line Coupler, Unshielded, KMJ Download Download
KMJ6ASFT Category 6A KMJ In-Line Coupler, Shielded, KMJ Download n/a

xx=color code; 02-Black; 12-Bright White

Instruction Sheets

Related Documents

Please Login Here to access additional documents.

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
