  • Category 6A Shielded Color Jacks

Category 6A – Shielded Jack

Installation zone RECOMMENDATION
1
1
1
1

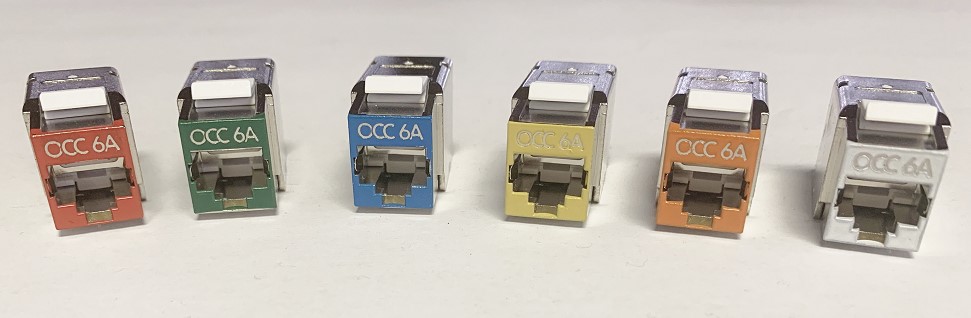

OCC’s Category 6A shielded modular jack with toolless design is simple to terminate and supports high performance 10 Gigabit networks. Termination is accomplished by simply inserting the conductors into the lacing cap, placing the cap into the connector housing, and closing the jack cover. All eight conductors are simultaneously terminated when the jack cover is squeezed closed. This process ensures consistent, reliable terminations.

The K6AS jack meets ANSI/TIA-568-C.2 Category 6A and ISO/IEC 11801:2002 AMENDMENT 2 Class EA specifications component performance, and fits into standard OCC faceplates and shielded multimedia panels. The K6AS is also sold as part of 24/48-port patch panel kits in both flat and angled panel configurations.

K6AS jacks and patch panels combined with OCC Cat6A F/UTP copper cabling and Cat6A shielded patch cords form an end-to-end Cat6A channel backed by OCC’s 25-year MDIS system performance warranty.

Applications

  • 10GBASE-T Ethernet
  • 2.5G/5GBASE-T Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Broadband Video
  • 155/622 Mbps ATM
  • Analog Voice/VOiP
  • PoE, PoE+, and PoE++
  • Available in Multiple Colors

Features

  • Meets ANSI/TIA-568-C.2 Category 6A specifications
  • Meets ISO/IEC 11801:2002 AMENDMENT 2 Class EA specifications
  • Supports IEEE 802.3an 10GBASE-T Ethernet
  • Toolless design allows for simple, consistent, reliable terminations
  • Shielded housing ensures superior ANEXT performance
  • Accommodates 22-24 AWG conductors
  • Modular Interface: 750 mating cycles
  • 50μin gold-plated contacts
  • Zinc alloy housing
  • Dielectric withstand: 1000 VAC RMS or 1414 VDC
  • 500MΩ insulation resistance
  • UL 1863

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
K6AS00 Category 6A Shielded Modular Jack, Electrical Ivory Download Download Quick Ship
K6AS01 Category 6A Shielded Modular Jack, Office White Download Download
K6AS02 Category 6A Shielded Modular Jack, Black Download Download
K6AS03 Category 6A Shielded Modular Jack, Red Download Download
K6AS04 Category 6A Shielded Modular Jack, Green Download Download
K6AS05 Category 6A Shielded Modular Jack, Blue Download Download
K6AS06 Category 6A Shielded Modular Jack, Gray Download Download
K6AS08 Category 6A Shielded Modular Jack, Orange Download Download
K6AS09 Category 6A Shielded Modular Jack, Yellow Download Download
K6AS10 Category 6A Shielded Modular Jack, Purple Download Download
K6AS12 Category 6A Shielded Modular Jack, White Download Download
K6AS18 Category 6A Shielded Modular Jack, Light Blue Download Download
Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
