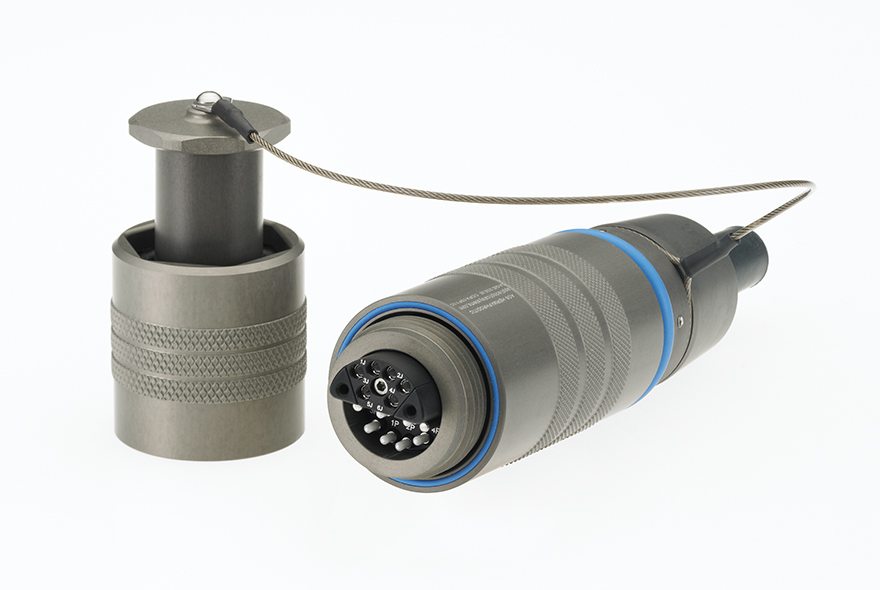

Pierside Hermaphroditic Fiber Optic Connector (12 CH)

Installation zone RECOMMENDATION
1
1
1
1

OCC’s Pierside family of fiber optic connectors is designed to meet the stringent Pierside performance specifications (NAVSEA 737971 performance and 7379172) and is an ideal connector system for much more than ship-to-shore communications. The Pierside connector provides a genderless mating system perfect for applications requiring high performance in single-mode, multimode or composite configurations in extreme environments. In addition, this connector is an excellent choice for other applications including broadcast, mining, land tactical, control systems, and more.

The OCC Pierside family of fiber optic connectors affords users the most comprehensive complement of connector options available, including replacement dust caps, strain-relief receptacles and 90° plugs, etc. Available in either single-mode, multimode or a combination of both, the design is compliant to the Commercial Item Description (CID) standard issued by the Naval Sea Command.

Applications

  • Ship-to-Shore Communications Umbilical Connect
  • Mobile Emergency Telecommunications Stations
  • Mobile Tactical Shelters
  • U.S. Army, Navy, and Marine Corps Military Tactical Deployments
  • Broadcast
  • Oil and Gas Industries

Features

  • Easy and manageable installations. The Pierside connector provides a true hermaphroditic design, allowing this connector to mate plug-to-plug or plug-to-receptacle. This allows for flexibility and quick fiber system deployments when multiple units are daisy-chained together. As one of the only manufacturers providing a true hermaphroditic dust cap as a standard, OCC's Pierside is capable of mating without regard for male or female gender of the interfacing connector.
  • Standards compliant. Available in single-mode, multimode or a combination of both, Pierside is compliant with the Commercial Item Description (CID) standard issued by the Naval Sea Command.
  • Comprehensive options for a variety of uses. OCC’s Pierside affords the most comprehensive complement of options available, including hermaphroditic or standard dust caps, strain-relief receptacles, 90° plugs and more. The interchangeable Detachable Socket Insert (DSI) and termini enable users to replace components as needed. Pierside is interoperable with other connectors complying to the same standard and features a hermaphroditic dust cap as a standard provision.

Standards

Performance Specifications

Performance

Specification

Parameter

Insertion loss (multimode)

TIA/EIA-455-171

0.30dB – typical, 0.75dB – maximum

Insertion loss (single-mode)

TIA/EIA-455-171

0.40dB – typical, 0.75dB – maximum

Back reflection (single-mode UPC polish)

EIA/TIA-455-60

-50dB – typical, -40dB – maximum

Operating temperature

TIA/EIA-455-5

-54° C to + 85° C

Storage temperature

TIA/EIA-455-5

-65° C to + 85° C

Temperature cycling

TIA/EIA-455-3

-54° C to + 85° C

Mating durability

TIA/EIA-455-21

1000 cycles

Impact

TIA/EIA-455-2

Method B , omit wall pipe

Twist

TIA-455-36

±90° rotation, 1 cycle/5 sec., 1000 cycles

Cable sealing flex

MIL-STD-1344, method 2017

100 cycles

Cable retention

EIA/TIA-455-6

400 lbs. min.

Crush resistance

EIA-455-26

450 lbs.

Physical shock

EIA/TIA-455-14

Condition C

Vibration

MIL-STD-1344

Method 2005.1

Temperature humidity

TIA/EIA-455-5C

Method B

Fluid immersion

EIA/TIA-455-12

24 hours per fluid

Water pressure



25 PSI, 24 hours

Ozone exposure

ATSM-D-1149

100-150 PPM for 2 hours

Flammability

MIL-STD-1344

Method 1012

Corrosion resistance

EIA/TIA-455-16

500 hours salt spray

Thermal shock

TIA/EIA-455-71

Condition B-0 except 10 cycles @ 85℃ and -62℃

Specifications

Part Number Description Type
TC1440CA COTS M29504/14 pin, 2.00mm ceramic ferrule, 126 µm I.D. Termini
TC1541CA COTS M29504/15 socket, 2.00mm ceramic ferrule, 126 µm I.D. Termini
CCPH30F100 Replacement dust cap, male, 6 CH or 12 CH Dust cap
CCPH20F100 Replacement dust cap, female, 6 CH or 12 CH Dust cap
CCPA10F11Cx 12 CH plug, hermaphroditic with hermaphroditic dust cap Plug, with dust cap
CCPC22F11C 12 CH jam nut receptacle, external jam nut with female dust cap Receptacle, jam nut, external
CCPA30F11Cx 12 CH plug, hermaphroditic with male dust cap Plug, with dust cap
CCPM10F1ACx 12 CH plug, 90°, with hermaphroditic dust cap Plug, with dust cap
CCPH0WF11C Replacement detachable socket insert - DSI (wedge) 6 - ceramic alignment sleeves Accessory
CCPH0WC11C Replacement detachable socket insert - DSI (wedge) 3 - ceramic alignment sleeves Accessory
CCPH10F100 Replacement dust cap, hermaphroditic, 6 CH or 12 CH Dust cap
CCPF22F11Cx 12 CH jam nut, strain-relief receptacle, external jam nut with female dust cap Strain-relief receptacle
PA35395-99-017 Crimp sleeve, brass, 0.114" O.D. Crimp sleeve
TC0339AA Dummy termini (fits either pin or socket) Termini
TC1546AA Replacement captivator guide bushing for DSI Accessory
Replace "x" with Diameter Code Configuration
 A  0.190"-0.239"
 B  0.240"-0.279"
 C  0.280"-0.315"
 D  0.316"-0.346"
 E  0.347"-0.379"
 F  0.380"-0.423"
 G  0.424"-0.465"
 H  0.466"-0.515"
 K  0.550"-0.589"
