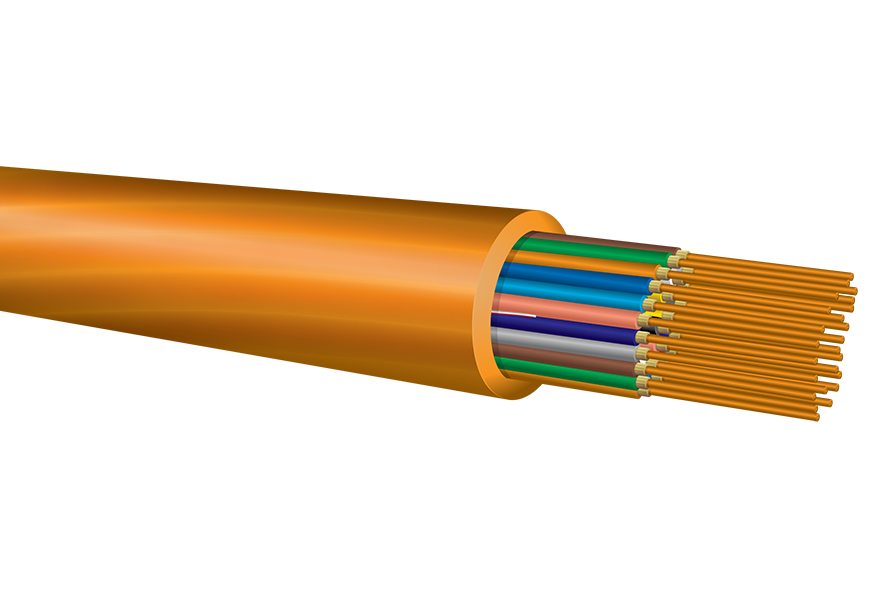

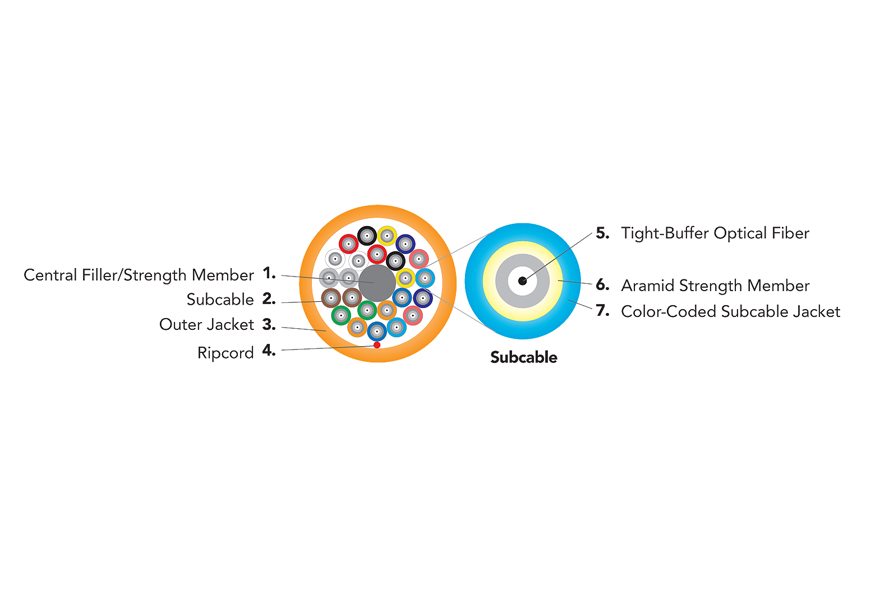

B-Series Breakout – Plenum Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are required
  • Installed in ducts, plenums, and air-handling spaces
  • Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired
  • Direct termination to subcable may eliminate the need for patch panels and patch cords and reduce connector loss
  • 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
  • High crush resistance may eliminate the need for innerduct

Applications

  • Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are required
  • Installed in ducts, plenums, and air handling spaces
  • Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired

COST SAVINGS

  • Direct termination to subcable may eliminate the need for patch panels and patch cords and reduce connector loss
  • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
  • High crush resistance may eliminate the need for innerduct

Features

  • High performance components and construction
  • UL Listed in accordance with NEC sections 770.179(a) for use in ducts, plenums and air-handling spaces
  • Most rugged and easy to install cable design for enterprise cabling applications
  • Standard 2.0mm subcables can be directly terminated with standard connectors. 2.5mm and 2.9mm subcable sizes are also available
  • Subcabled fiber is environmentally and mechanically protected
  • Ideal for use in point-to-point runs in adverse environments
  • Direct termination to subcable provides additional strain relief for better connector retention during moves, adds, and changes
  • Design is ideal for direct pulling with mesh grips
  • Cable materials are Indoor/Outdoor - UV, water and fungus resistant
  • Wide operating temperature range of -40°C to +85°C
  • High performance 900 µm tight-buffered coating on each optical fiber for environmental and mechanical protection
  • Jacket highly chemical resistant for installation in harsh industrial environments
  • Interlocking armor can be applied to cables as an alternative to conduit installation
  • 2 to 48 fibers

Characteristics

Characteristic Plenum
Operating Temp -40°C to +85°C
Storage Temp -40°C to +85°C
Install Temp 0°C to +60°C
Flame Retardancy UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resist 2100 N/cm
Impact Resist 1000 impacts
Flex Resist 2000 cycles
Jacket Type K

Standards

Optical Cable Corporation Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirement of the following standards:

  • UL 1651
  • ANSI/NFPA 262
  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598

Specifications

Plenum

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 BX002K***9*P 6.3
(0.25)
46.0
(31.0)
1,600
(360)
400
(90)
9.5
(3.7)
9.5
(3.7)
4 BX004K***9*P 6.3
(0.25)
46.0
(31.0)
1,600
(360)
400
(90)
9.5
(3.7)
9.5
(3.7)
6 BX006K***9*P 7.4
(0.29)
61.0
(41.0)
2,400
(540)
600
(130)
11.2
(4.4)
11.2
(4.4)
8 BX008K***9*P 8.7
(0.34)
88.0
(59.0)
3,200
(720)
800
(180)
13.1
(5.2)
13.1
(5.2)
12 BX012K***9*P 10.0
(0.39)
105.0
(71.0)
4,800
(1,080)
1,200
(270)
15.0
(5.9)
15.0
(5.9)
18 BX018K***9*P 12.2
(0.48)
162.0
(109.0)
6,000
(1,350)
1,500
(340)
18.3
(7.2)
18.3
(7.2)
24 BX024K***9*P 14.2
(0.56)
221.0
(148.0)
7,200
(1,620)
1,800
(400)
21.3
(8.4)
21.3
(8.4)
36 BX036K***9*P 15.7
(0.62)
274.0
(184.0)
9,600
(2,160)
2,400
(540)
23.6
(9.3)
23.6
(9.3)
48 BX048K***9*P 18.4
(0.72)
376.0
(253.0)
12,000
(2,700)
3,000
(670)
27.6
(10.9)
27.6
(10.9)
