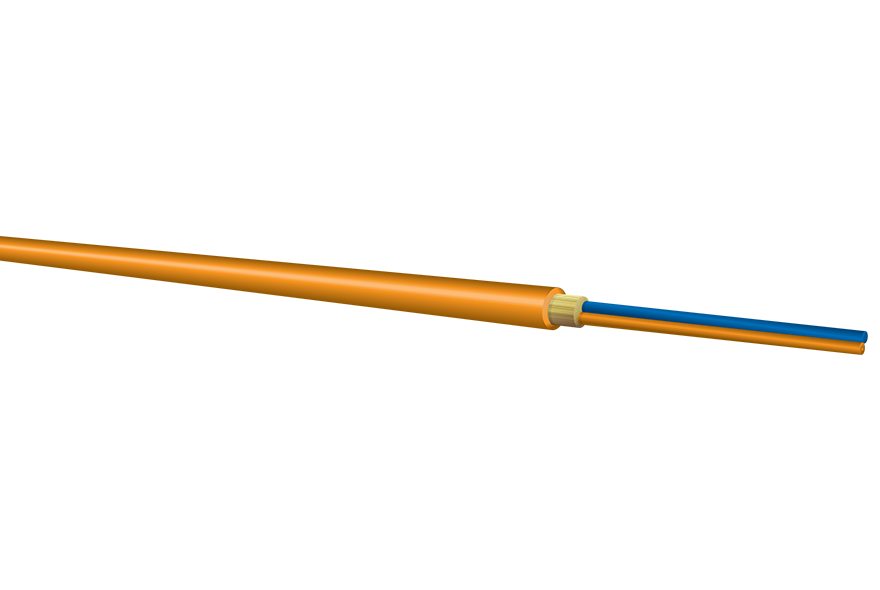

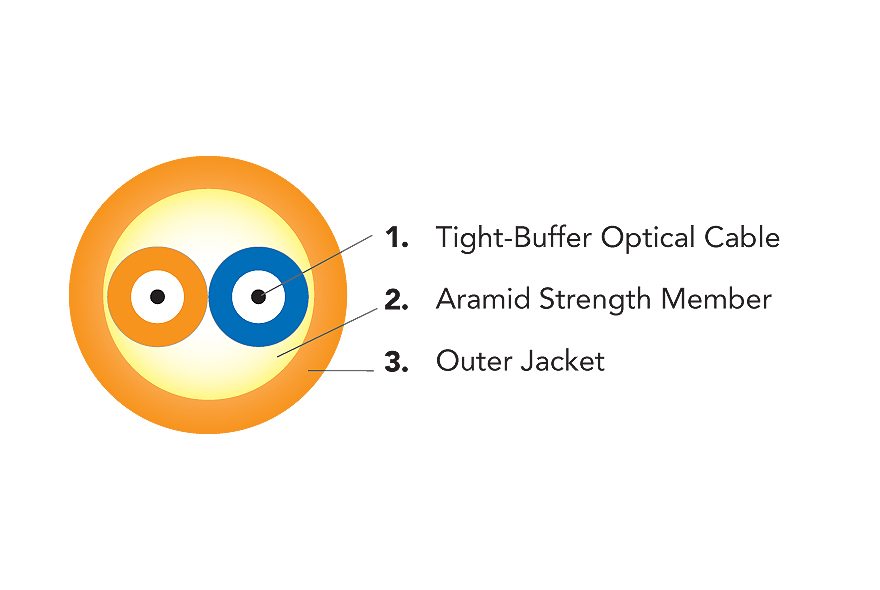

DP-Series Assembly – Mini Round Duplex LSZH Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Flexible, resilient for interconnect applications
  • Small size for dense usage
  • For small form-factor duplex connectors, such as MT-RJ

Applications

  • Flexible, resilient for interconnect applications
  • Small size for dense usage
  • For small form-factor duplex connectors, such as MT-RJ

Features

  • 900µm buffer is standard; 600µm buffer is optional for riser rated cables
  • Zero-halogen construction to IEC 60754-2 available
  • 900µm tight buffer for excellent mechanical and environmental performance

Characteristics

Characteristic Zero Halogen
Operating Temp -40°C to +70°C
Storage Temp -40°C to +70°C
Install Temp 20°C to +60°C
Crush Resist 750 N/cm
Impact Resist 1000 impacts
Flex Resist 1000 cycles
Jacket Type Z

Standards

OCC tight-buffered fiber optic mini-round cables meet the functional requirements of the following standards:

  • IEC 60754-2
  • GR-409-CORE
  • ICEA-S-83-596

Specifications

Zero Halogen

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 DP002Z***9*Z 2.9
(0.1)
8.0
(5.0)
500
(110)
300
(70)
5.0
(2.0)
2.9
(1.1)
