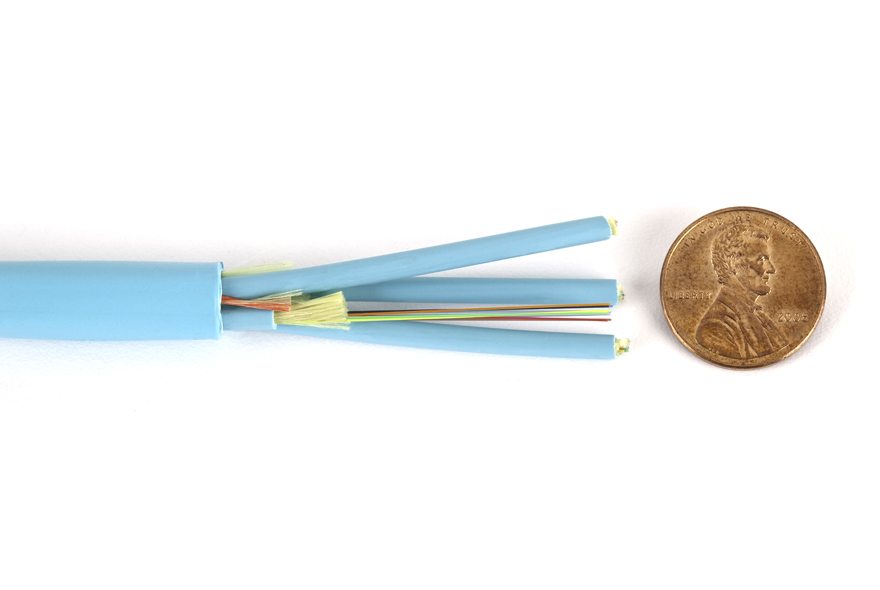

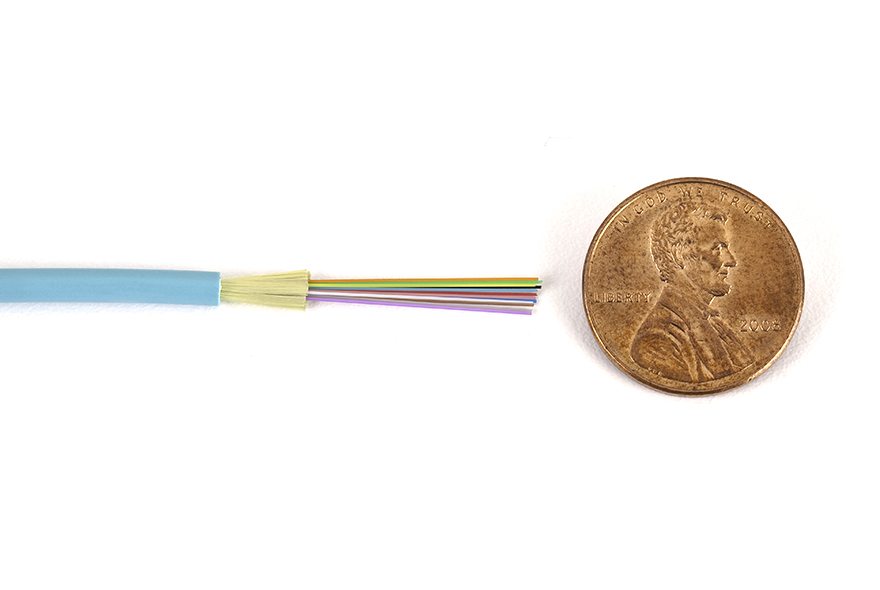

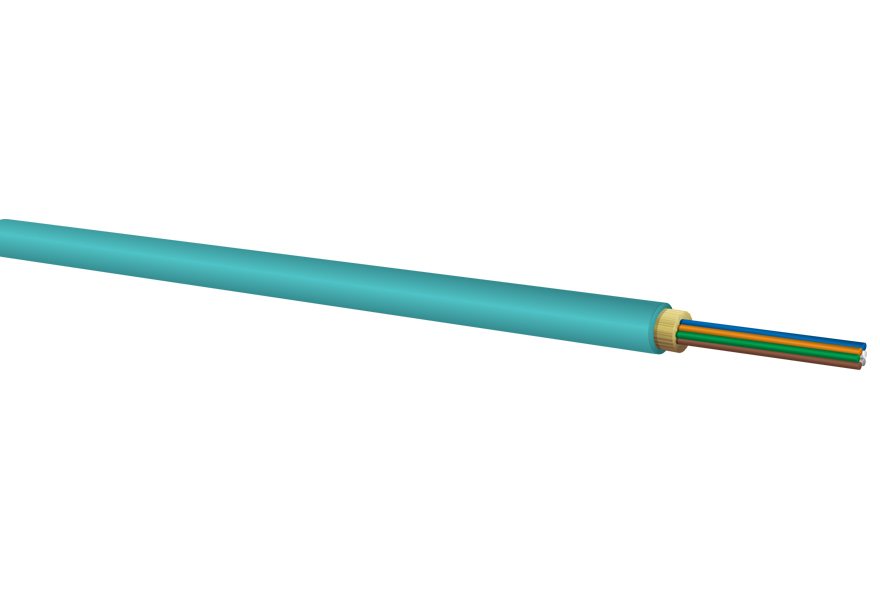

HD-Series – High-Density Plenum Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ideal for use in trunk, LAN, data center, 40/100GbE and other high-density applications where small size, lightweight, and very small bend radii are required
  • Inventory one cable type to cover the complete range of legacy ST, SC, FC, LC, and advanced MPO-style connectivity
  • Installations in ducts, plenums, risers, and air-handling spaces
  • Space-saving applications where MTP can be directly terminated to the subcables
  • Small diameter, which saves space and greatly increases capacity in tray systems, improves cable management and increases cooling power efficiency and cost for under raised floor cabling systems in data centers

Applications

  • Ideal for use in trunk, LAN, data center, 40/100GbE and other high-density applications where small size, lightweight, and very small bend radii are required
  • Inventory one cable type to cover the complete range of legacy ST, SC, FC, LC, and advanced MPO-style connectivity
  • Installations in ducts, plenums, risers, and air-handling spaces
  • Space-saving applications where MTP can be directly terminated to the subcables
  • Small diameter, which saves space and greatly increases capacity in tray systems, improves cable management and increases cooling power efficiency and cost for under raised floor cabling systems in data centers

Features

  • Smaller and lighter than conventional subgrouped cable
  • Ideal for installation in areas with limited space or tight bends
  • Easily ribbonized for use with MPO-style connectors
  • 8 to 144-fiber premises applications
  • UL Listed in accordance with NEC section 770.179(a)
  • Superior bend performance with negligible dB loss at very small bend radii
  • Standard with bend-tolerant fiber: OM3 and OM4 50µm fiber or ITU-T G.657.A1 single-mode fiber
  • HD series is ideal for use with 24-fiber MPO connectors

Characteristics

Characteristic HD Plenum
Operating Temp 0°C to +70°C
Storage Temp -40°C to +70°C
Install Temp 0°C to +60°C
Flame Retardancy UL listed type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resist 35 N/cm
Impact Resist 6 impacts
Flex Resist 25 cycles
Jacket Type S

Standards

OCC indoor high-density cables meet the functional requirement of the following standards:

  • GR-409-CORE
  • ICEA-S-83-596
  • TIA-568
  • TIA-598

Specifications

HD Plenum

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
8 HD008S***J*P 3.0
(0.12) 		9.1
(6.0) 		500
(110) 		300
(70) 		4.5
(1.8) 		3.0
(1.2)
12 HD012S***J*P 3.0
(0.12) 		9.1
(6.0) 		500
(110) 		300
(70) 		4.5
(1.8) 		1.8
(0.7)
24 HD024S***J*P 10.2
(0.40) 		103.0
(69.0) 		1,335
(300) 		667
(150) 		15.3
(6.0) 		10.2
(4.0)
36 HD036S***J*P 10.2
(0.40) 		103.0
(69.0) 		1,335
(300) 		667
(150) 		15.3
(6.0) 		10.2
(4.0)
48 HD048S***J*P 10.2
(0.40) 		103.0
(69.0) 		1,335
(300) 		667
(150) 		15.3
(6.0) 		10.2
(4.0)
72 HD072S***J*P 11.7
(0.46) 		148.0
(99.0) 		1,335
(300) 		667
(150) 		17.6
(6.9) 		11.7
(4.6)
84 HD084S***J*P 13.0
(0.51) 		174.0
(117.0) 		1,335
(300) 		667
(150) 		19.5
(7.7) 		13.0
(5.1)
96 HD096S***J*P 14.0
(0.55) 		204.0
(137.0) 		1,335
(300) 		667
(150) 		21.0
(8.3) 		14.0
(5.5)
108 HD108S***J*P 15.2
(0.60) 		236.0
(159.0) 		1,335
(300) 		667
(150) 		22.8
(9.0) 		15.2
(6.0)
120 HD120S***J*P 15.9
(0.63) 		268.0
(180.0) 		1,335
(300) 		667
(150) 		23.9
(9.4) 		15.9
(6.3)
144 HD144S***J*P 16.0
(0.63) 		246.0
(165.0) 		1,335
(300) 		667
(150) 		24.0
(9.4) 		16.0
(6.3)

HZ Series

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
8 HZ******J*P Please Call OCC for ordering assistance. 3.0
(0.12) 		9.1
(6.0) 		500
(110) 		300
(70) 		4.5
(1.8) 		3.0
(1.2)
12 Please Call OCC for ordering assistance. 3.0
(0.12) 		9.1
(6.0) 		500
(110) 		300
(70) 		4.5
(1.8) 		1.8
(0.7)
24 Please Call OCC for ordering assistance. 10.2
(0.40) 		103.0
(69.0) 		1,335
(300) 		667
(150) 		15.3
(6.0) 		10.2
(4.0)
36 Please Call OCC for ordering assistance. 10.2
(0.40) 		103.0
(69.0) 		1,335
(300) 		667
(150) 		15.3
(6.0) 		10.2
(4.0)
48 Please Call OCC for ordering assistance. 10.2
(0.40) 		103.0
(69.0) 		1,335
(300) 		667
(150) 		15.3
(6.0) 		10.2
(4.0)
72 Please Call OCC for ordering assistance. 11.7
(0.46) 		148.0
(99.0) 		1,335
(300) 		667
(150) 		17.6
(6.9) 		11.7
(4.6)
84 Please Call OCC for ordering assistance. 13.0
(0.51) 		174.0
(117.0) 		1,335
(300) 		667
(150) 		19.5
(7.7) 		13.0
(5.1)
96 Please Call OCC for ordering assistance. 14.0
(0.55) 		204.0
(137.0) 		1,335
(300) 		667
(150) 		21.0
(8.3) 		14.0
(5.5)
108 Please Call OCC for ordering assistance. 15.2
(0.60) 		236.0
(159.0) 		1,335
(300) 		667
(150) 		22.8
(9.0) 		15.2
(6.0)
120 Please Call OCC for ordering assistance. 15.9
(0.63) 		268.0
(180.0) 		1,335
(300) 		667
(150) 		23.9
(9.4) 		15.9
(6.3)
144 Please Call OCC for ordering assistance. 16.0
(0.63) 		246.0
(165.0) 		1,335
(300) 		667
(150) 		24.0
(9.4) 		16.0
(6.3)
Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
