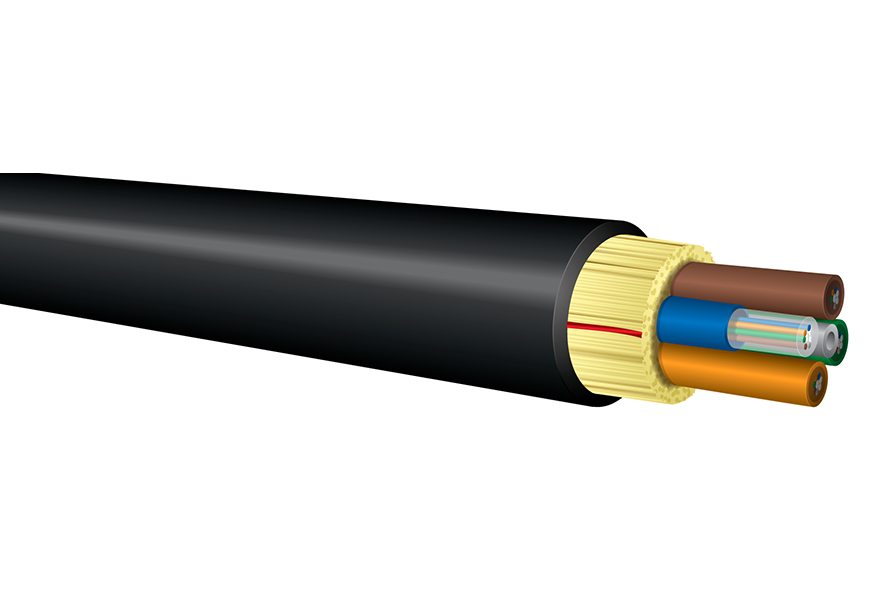

HC-Series – High-Density Riser Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Designed for installation in an underground duct for data transmission between nodes or hubs
  • Cable can also be routed vertically inside buildings

Applications

  • Designed for installation in an underground duct for data transmission between nodes or hubs
  • Cable can also be routed vertically inside buildings

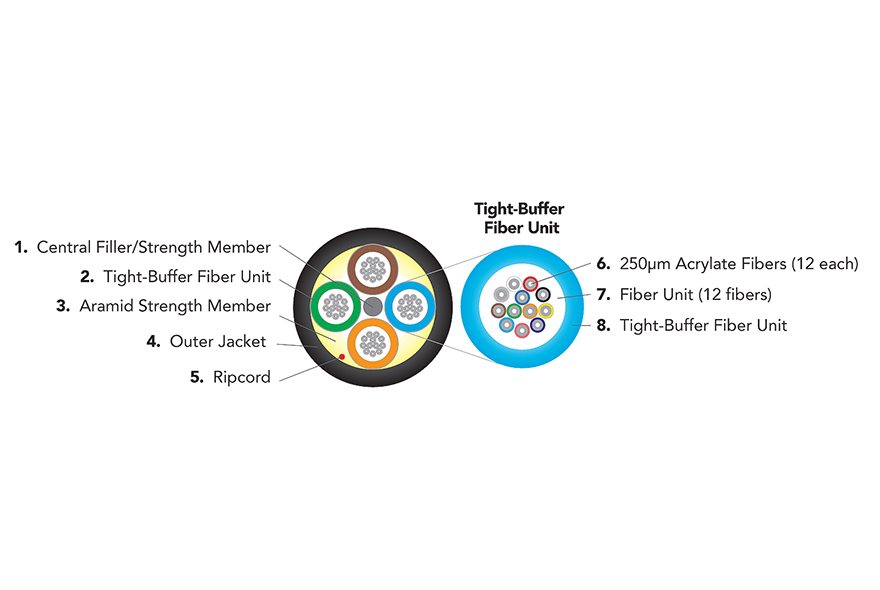

Features

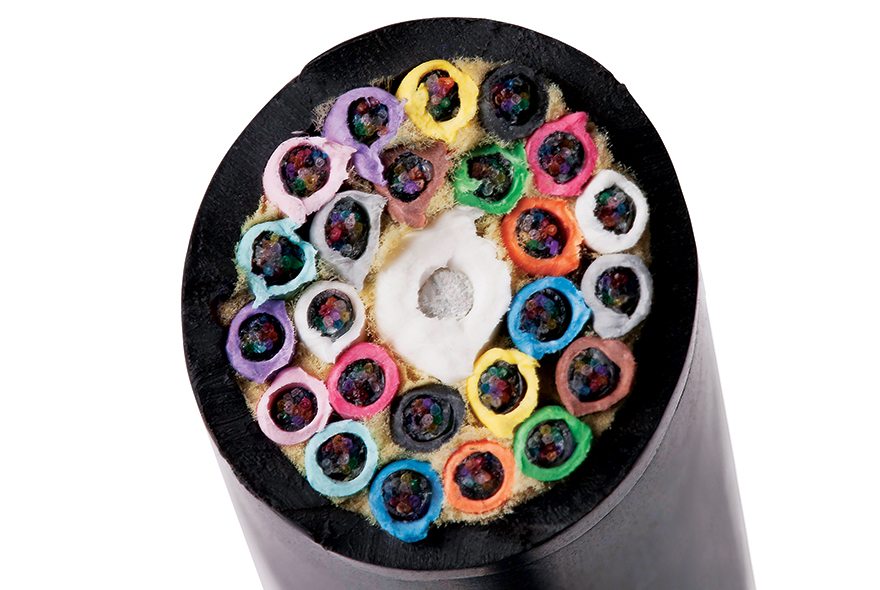

  • Rugged tight-buffered fiber unit construction
  • Cable materials are Indoor/Outdoor: UV, fungus, and water resistant
  • The high-density breakout cables offer a >20% reduction in diameter and a >20% reduction in weight relative to conventional loose-tube cables, allowing for greater fiber density and cable packing within a duct
  • UL listed in accordance with NEC 770.179(b) for use in vertical runs in building risers or from floor to floor
  • Core-Locked™ outer jacket design for installation survivability
  • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
  • Cable offers a cost savings by eliminating the need to splice outdoor cable at building entrance
  • Cable can be terminated with 900µm fanout kit for LC connectorization
  • Construction options available for direct termination of tight-buffered fiber units to MPO/MTP connectors
  • Suitable for direct pulling with wire mesh grips

Characteristics

Characteristic
Operating Temp-40°C to +85°C
Storage Temp-55°C to +85°C
Install Temp-20°C to +60°C
Flame RetardancyUL listed type OFNR (UL 1666)
Crush Resist1800 N/cm
Flex Resist2000 cycles
Jacket TypeD

Standards

OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1666
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598

Specifications

Tensile LoadMinimum Bend Radius
Fiber CountPart NumberPart Number ConfiguratorDiameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

24HC024D***C*R 7.6
(0.3)
75.0
(50.0)
2,700
(600)
600
(135)
11.4
(4.5)
7.6
(3.0)
48HC048D***C*R 7.6
(0.3)
75.0
(50.0)
2,700
(600)
600
(135)
11.4
(4.5)
7.6
(3.0)
72HC072D***C*R 9.0
(0.4)
97.0
(65.0)
2,700
(600)
600
(135)
13.5
(5.3)
9.0
(3.5)
96HC096D***C*R 10.3
(0.4)
116.0
(78.0)
2,700
(600)
600
(135)
15.5
(6.1)
10.3
(4.1)
120HC120D***C*R 11.4
(0.4)
141.0
(95.0)
2,700
(600)
600
(135)
17.1
(6.7)
11.4
(4.5)
144HC144D***C*R 11.7
(0.5)
152.0
(102.0)
2,700
(600)
600
(135)
17.6
(6.9)
11.7
(4.6)
168HC168D***C*R 11.7
(0.5)
152.0
(102.0)
2,700
(600)
600
(135)
17.6
(6.9)
11.7
(4.6)
192HC192D***C*R 12.9
(0.5)
179.0
(120.0)
2,700
(600)
600
(135)
19.4
(7.6)
12.9
(5.1)
216HC216D***C*R 12.9
(0.5)
179.0
(120.0)
2,700
(600)
600
(135)
19.4
(7.6)
12.9
(5.1)
288HC288D***C*R 15.0
(0.6)
226.0
(152.0)
2,700
(600)
600
(135)
22.8
(9.0)
15.0
(5.9)
