MSDE Enclosures

Installation zone RECOMMENDATION
1
1
1
1

The MSDE (Multiple Service Distribution Enclosure) solution is designed primarily for MDU installations. These compact enclosures are only 10" high and can be flush-mounted between standard 16" stud walls. Voice, Data and Video Distribution modules enable analog voice (POTS), Broadband Internet, Ethernet/IP data and RF video to be distributed to multiple outlet locations or devices within a residence.

Features

  • Specifications for System:
  • ANSI/TIA-570-C Residential Telecommunications Infrastructure Standard compliant
  • UL 1863 Communication Circuit Accessory
  • 16AWG steel constructionDimensions:
  • 14.38"W x 10.62"H x 3.12"DFeatures
  • Standard 16" stud-wall installation (can also be turned to fit 12" center-wall studs)
  • Module bracket to accommodate future needs
  • Rugged steel construction, including flanged, latching door
  • White powder-coat finish covers
  • Knockouts on top, bottom and side for easy cable entrance
  • Flexible tie-down locations for cable management
  • In-wall flush-mount design
  • Preset wall thickness tabs for easy installation
  • Can be ordered empty or preconfigured
  • Includes J-box cutout
  • (4) 1.38" cable entry holes in top
  • (3) 1.38" cable entry knockouts in each side

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP
MSDET000D00V0MSDE 10" Enclosure with 3 position bracket, hinged cover, and J-box cutout Download Download
MSDET000D00V0-ACMSDE 10" Enclosure with 3 position bracket, hinged cover, and J-box kit Download Download
MSDE-BOX1MSDE 10" Enclosure with 3 position bracket, no cover, and J-box cutout Download Download
MSDE-BOX2MSDE 10" Enclosure with no bracket, no cover, and J-box cutout Download Download
MSDE-DOORMSDE 10" standard hinged cover Download Download

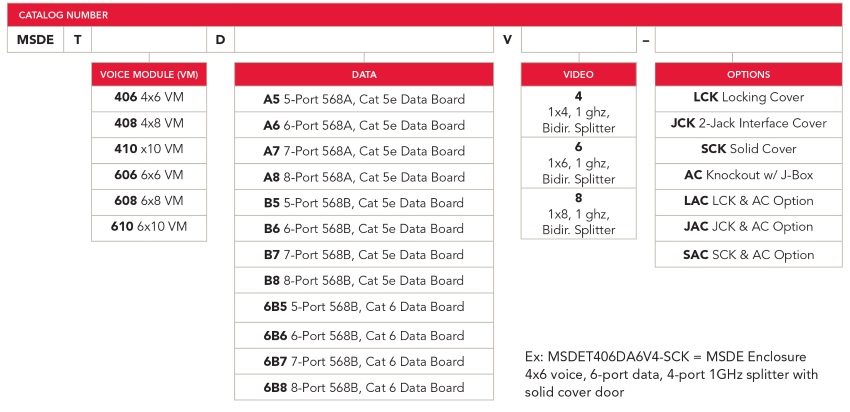

Pre-Configured MSDE boxes - see ordering chart below:
