50µm 10 Gig Adapter Plates

Installation zone RECOMMENDATION
1
1
1
1

To accompany all OCC fiber optic enclosures, Optical Cable Corporation developed snap-in fiber adapter plates that are versatile enough to meet any fiber application and durable enough to withstand field installations. All OCC fiber adapter plates guarantee performance parameters for the application specified, and can be pre-loaded into OCC fiber cabinets for easy plug-and-play operability.

Features

  • Available in 6, 8, and 12-port fiber configurations
  • Panel options available include ST, SC, FC, MT-RJ, LC, and others
  • Higher density applications can be reached through OCC's Quad LC adapter plates
  • Blank panels are available for use as dust covers
  • Plates are available for mounting bezel style jacks, creating a mixed-media environment

Specifications

Download Drawing(s)
Part Number Description PDF DWG/ZIP
616SC50G Adapter Plate, 6-port, SC, Multimode, 50µm 10 Gig, Composite Sleeve Download Download
616DSC50G Adapter Plate, 6-port, Dual SC, Multimode, 50µm 10 Gig, Composite Sleeve Download Download
6112DSC50G Adapter Plate, 12-port, Dual SC, Multimode, 50µm 10 Gig, Composite Sleeve Download Download

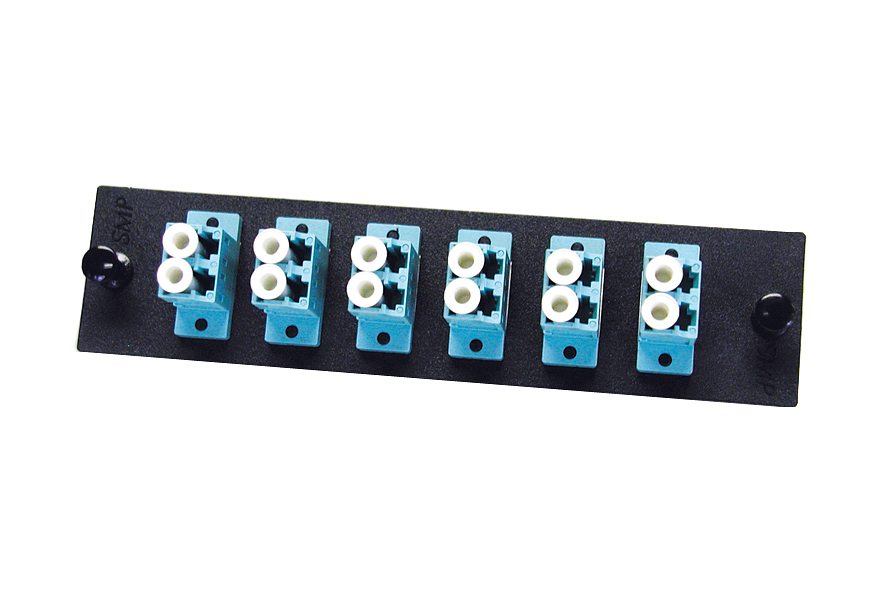

616DLC50G Adapter Plate, 6-port, Dual LC, Multimode, 50µm 10 Gig, Composite Sleeve Download Download
6112DLC50G Adapter Plate, 12-port, Dual LC, Multimode, 50µm 10 Gig, Composite Sleeve Download Download
6124QLC50G Adapter Plate, 24-port, Quad LC, Multimode, 50µm 10 Gig, Composite Sleeve Download Download
