Passive Optical Network Cassettes
Installation zone RECOMMENDATION1
1
1
1
- Low loss Planar Light wave Circuit (PLC) design
- Dual input ports also available for redundancy
- 2mm fiber pigtails (1-meter length) for easy patching to adapter plates/cassettes
- Modular cassettes compatible with OCC standard 600-series enclosure mounting
- Push-pin fasteners for easy snap-in mounting
- Multiple splitter configurations available for optimal network design

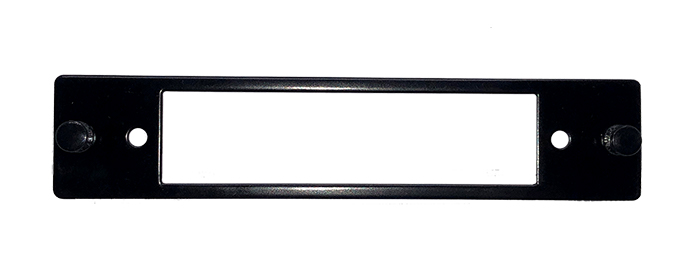

- FSCS-CCH Adapter Assembly Module enables OCC 600-Series Cassettes and Adapter Plates to be compatible with CCH style enclosures.
Specifications
| Download Drawing(s) | ||||
|---|---|---|---|---|
| Part Number | Description | DWG/ZIP | ||
| PONC1X8SCAPC2 | 1x8 PON Splitter w/2mm Pigtails | Download | Download | |
| PONC1X16SCAPC2 | 1x16 PON Splitter w/2mm Pigtails | Download | Download | |

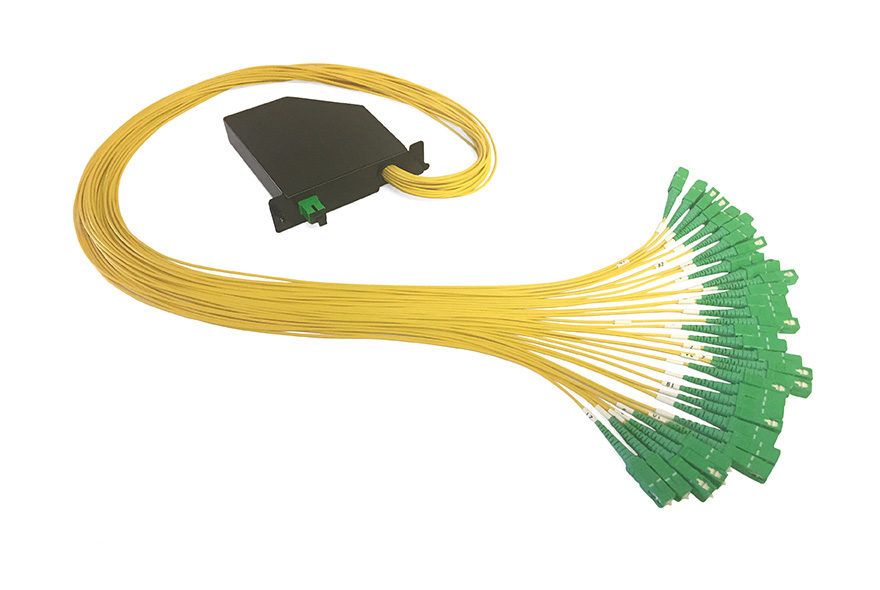

| PONC1X32SCAPC2 | 1x32 PON Splitter w/2mm Pigtails | Download | Download | |
| PONC1X64SCAPC2 | 1x64 PON Splitter w/2mm Pigtails | Download | Download | |
| PONC2X4SCAPC2 | 2x4 PON Splitter w/2mm Pigtails | Download | Download | |
| PONC2X8SCAPC2 | 2x8 PON Splitter w/2mm Pigtails | Download | Download | |
| PONC2X16SCAPC2 | 2X16 PON Splitter w/2mm Pigtails | Download | Download | |
| PONC2X32SCAPC2 | 2X32 PON Splitter w/2mm Pigtails | Download | Download | |
| PONC2X64SCAPC2 | 2x64 PON Splitter w/2mm Pigtails | Download | Download | |
| PONCMTP12SCAPC2N | PON Fiber breakout cassette, SM, MTP to 12 SC/APC | Download | Download | |
| PONC1X2SCAPC2 | 1x2 PON Splitter w/2mm Pigtails | Download | Download | |
| PONC1X4SCAPC2 | 1x4 PON Splitter w/2mm Pigtails | Download | Download | |
| FSCS-CCH | OCC-to-CCH Adapter Assembly | Download | Download | |
