RSC Enclosures
Installation zone RECOMMENDATION1
1
1
1
OCC's Rack Mount Splice Cabinets (RSC) apply integrated fiber patch and splice features into a convenient rack mountable solution. Each RSC cabinet may be mounted to either a 19" or 23" rack or enclosure and deliver rugged durability with the convenience of one source distribution.
Features
- Constructed of 16 gauge steel with durable powder coat finish
- High-Density patch & splice
- Front and rear locking options available

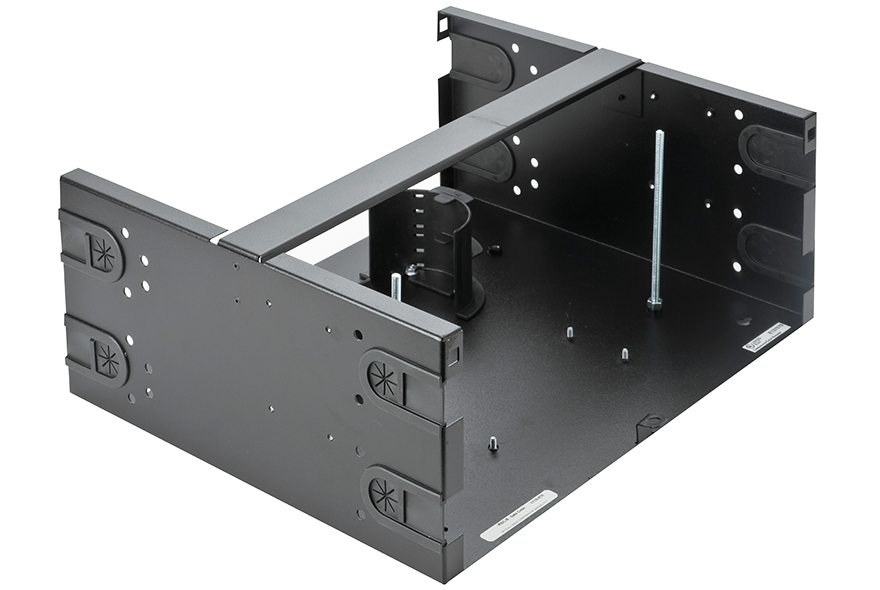

- Two-tier fiber storage hoops designed to maintain orderly fiber management

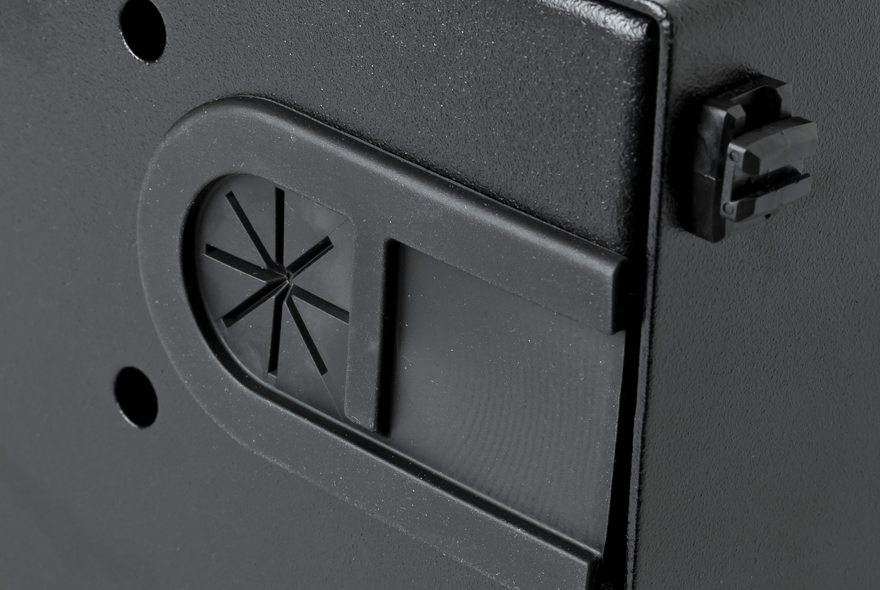

- Full rubber grommets offer dust protection for all cable entry and exit points

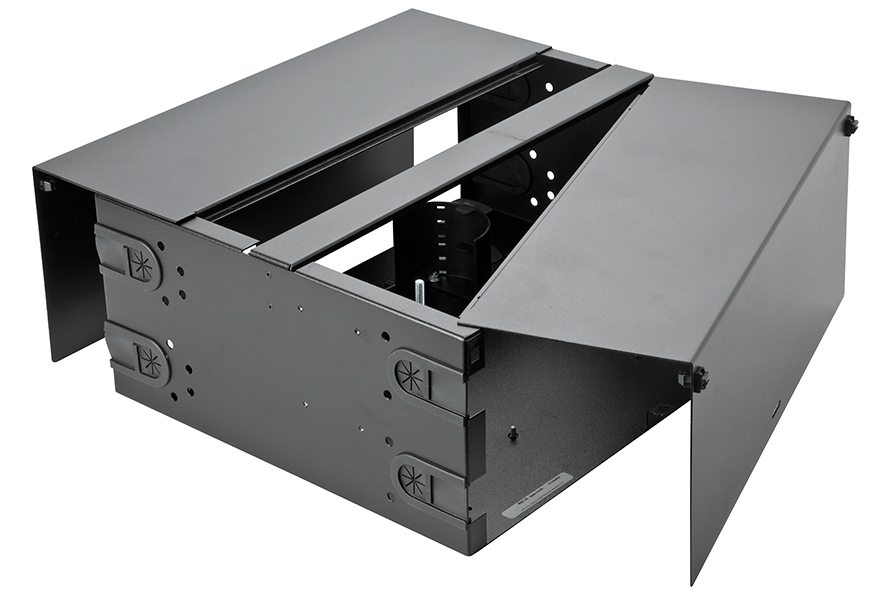

- Removable front and rear access panel
- Mounting hardware included for 19" or 23" rack mounting
- Available in Almond or Black
Specifications
| Download Drawing | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Rack Units | Ports | Adapter Plates | Splice Capacity | Splice Kits | DWG/ZIP | ||
| RSC-1UB | 1 | - | - | 48 | RxxTS | Download | Download | ||
| RSC-x | (no splice trays installed) | 4 | - | - | 144 | RxxTS | Download | Download | |
| RSC-72x | (Includes R72TS kit) | 4 | - | - | 72 | R72TS | Download | Download | |
| RSC-144x | (Includes R144TS kit) | 4 | - | - | 144 | R144TS | Download | Download | |
| OCWS864x | Outdoor / Indoor Wall Mount Splicing Cabinet, Accommodates W144S Splice Kits | - | - | 144 | W144S | Download | Download | ||
"x" denotes cabinet color; Replace with A = Almond or B = Black. Replace "xx" with fiber splice count.
