Keyed Adapter Plates

Installation zone RECOMMENDATION
1
1
1
1

To accompany all OCC fiber optic enclosures, OCC developed snap-in fiber adapter plates that are versatile enough to meet any fiber application and durable enough to withstand field installations. All OCC fiber adapter plates guarantee performance parameters for the application specified and can be pre-loaded into OCC fiber cabinets for easy plug-and-play operability.

Features

  • Available in 6, 8, and 12-port fiber configurations
  • Panel options available include ST, SC, FC, MT-RJ, LC, and others
  • High-density applications can be reached through Dual and quad LC applications
  • Composite, metal, or ceramic sleeve options
  • Blank panels are available for use as dust covers
  • Plates are available for mounting bezel style jacks, creating a mixed-media environment

Specifications

Download Drawing(s)
Part NumberDescriptionPDFDWG/ZIP

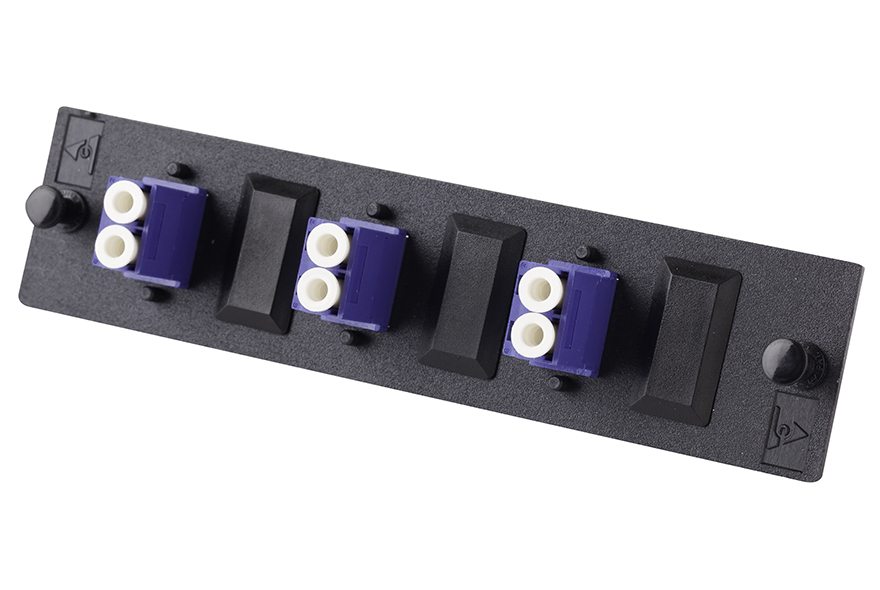

LAX616DLCxxAdapter plate, 6-port, DLCx3, Keyed, SM/MM Download Download

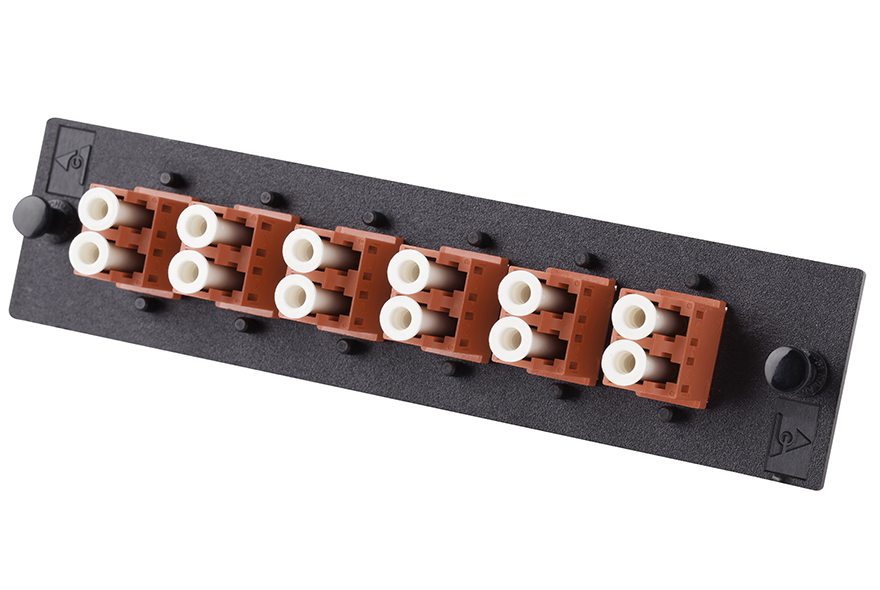

LAX6112DLCxxAdapter plate, 12-port, DLCx6, Keyed, SM/MM Download Download
LAX6124QLCxxAdapter plate, 24-port, QLCx6, Keyed, SM/MM Download Download
LAX818DLCxxAdapter Plate, 8-port, DLCx4, Keyed, SM/MM Download Download

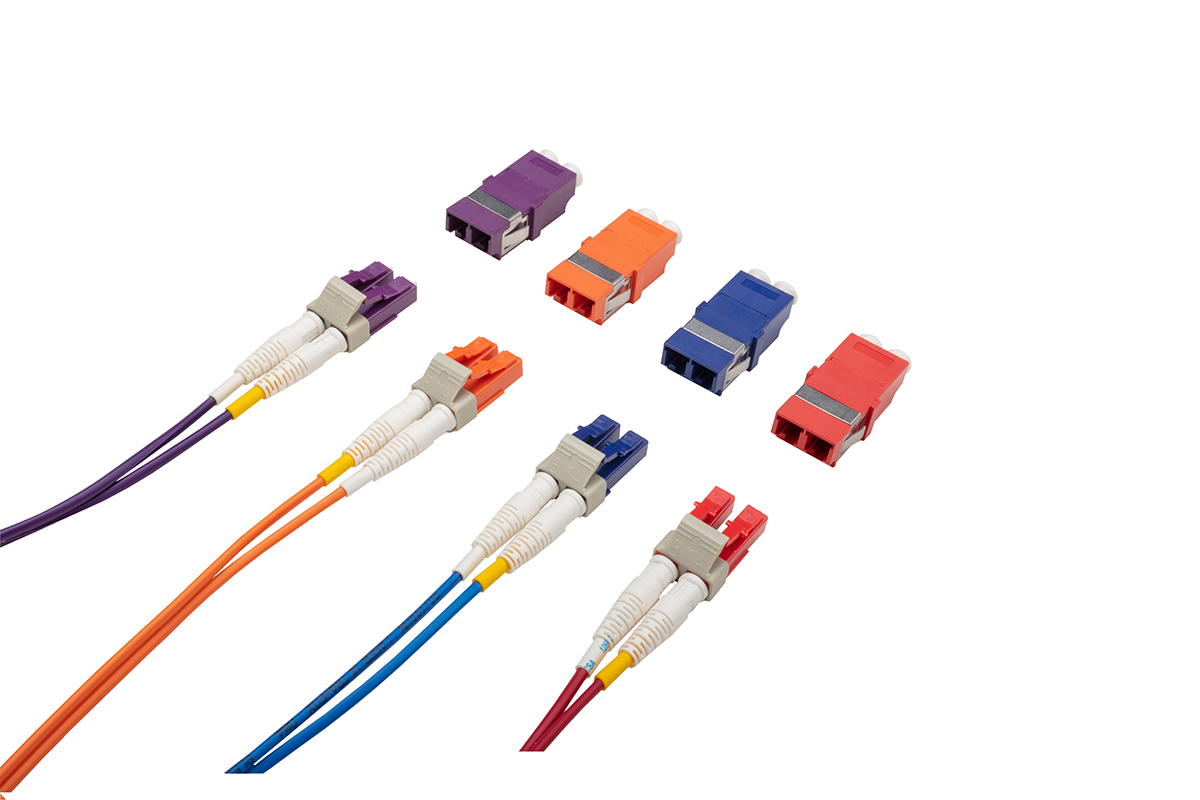

* Replace "xx" with color code: BL=Blue, GN=Green, RD=Red, YL=Yellow, PK=Pink, WT=White, OR=Orange, PL=Purple, SL=Slate, BN=Brown, AQ=Aqua, RS=Rose.
